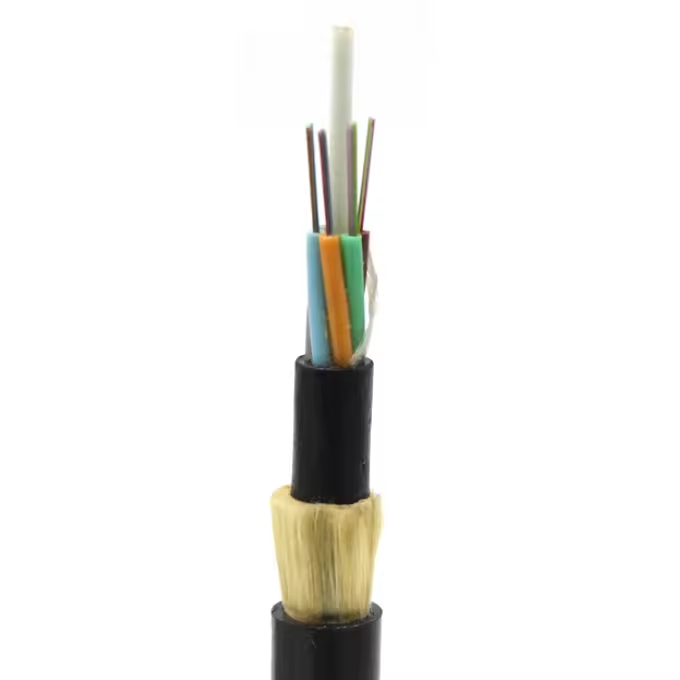

48-Core ADSS Fiber Optic Cable – High-Performance, Self-Supporting Solution for Aerial Deployments

Discover the ultimate in outdoor fiber connectivity with Jiqian’s 48-core ADSS (All-Dielectric Self-Supporting) fiber optic cable, engineered for long-span aerial installations. Designed for maximum durability and signal integrity, this single-mode fiber solution offers a reliable alternative to traditional copper lines, especially where power lines are present or space is limited. With its robust double-jacketed construction and FRP (Fiber Reinforced Plastic) armor, it delivers superior mechanical strength while maintaining lightweight performance—ideal for telecom operators, utility companies, and broadband providers seeking efficient, future-ready infrastructure.

Key Features That Set It Apart

This adss cable combines advanced materials and smart engineering to meet the demands of modern networks. Featuring 48 individual fibers arranged in four loose tubes (12 fibers per tube), it supports high-density data transmission without compromising flexibility during installation. The inner and outer jackets provide dual-layer protection against UV exposure, moisture ingress, and temperature extremes. Its rated tensile strength of 12 kN ensures safe operation under heavy wind and ice loads, making it suitable for spans up to 100 meters—though longer distances (up to 1000m) are achievable depending on environmental conditions.

Detailed Technical Specifications

The cable uses G652D standard single-mode fiber, offering ultra-low attenuation: ≤0.35 dB/km at 1310nm and ≤0.22 dB/km at 1550nm. This low loss translates into extended transmission reach and minimal signal degradation over distance—critical for long-haul communication links. The armid yarn reinforcement adds structural resilience, reducing sag and preventing damage from tension stress. Unlike conventional cables that require additional support structures, ADSS cables can be installed directly onto existing utility poles without interrupting electrical services—a major advantage in urban and rural deployment scenarios. The black outer jacket enhances weather resistance and provides visual clarity in diverse lighting environments.

Applications Across Industries

Engineered for versatility, this fiber-optic solution excels in telecommunications backbones, fiber-to-the-home (FTTH) rollouts, cable TV distribution systems, and smart grid communications. Whether you're upgrading legacy networks or building new infrastructure, the self-supporting design eliminates the need for costly messenger wires or steel cables. Its compatibility with splice closures and ease of mid-entry routing makes it a favorite among field technicians looking to reduce labor time and installation complexity. From remote villages to metropolitan areas, this cable adapts seamlessly to challenging terrain and varying climatic zones.

User Feedback Highlights

Users consistently praise its reliability in extreme conditions—from coastal regions with salt-laden air to mountainous zones prone to heavy snowfall. Many highlight how the lightweight profile minimizes strain on poles and reduces maintenance needs over time. Field engineers appreciate the intuitive handling and consistent performance across multiple deployments, noting fewer splicing errors compared to older designs. One installer remarked, “This cable simplifies our work—it holds up better than anything we’ve used before, even when spanning wide valleys.”

Frequently Asked Questions

What does ADSS mean? All-Dielectric Self-Supporting refers to a type of fiber optic cable that carries no metallic components, eliminating risks of electrical interference and allowing safe installation alongside high-voltage power lines.

Can it be used in high-voltage environments? Yes, the cable is designed to withstand induced voltages up to 25kV, making it ideal for co-location with overhead power conductors without requiring grounding or shielding.

How long can one span be? While this model is optimized for 100-meter spans, many installations achieve 300–1000 meters depending on local weather patterns, pole spacing, and load calculations.

Is it suitable for indoor use? No, this product is specifically designed for outdoor aerial applications. For indoor or underground use, alternative cable types such as duct or direct-buried variants are recommended.

In summary, the 48-core ADSS fiber optic cable represents a premium choice for professionals who demand uncompromised performance, safety, and scalability. With its combination of proven technology, user-friendly design, and global applicability, it stands out as a top-tier option in today’s expanding digital landscape.

Product Categories : Outdoor Fiber Optic Cable > ADSS Fiber Optic Cable
