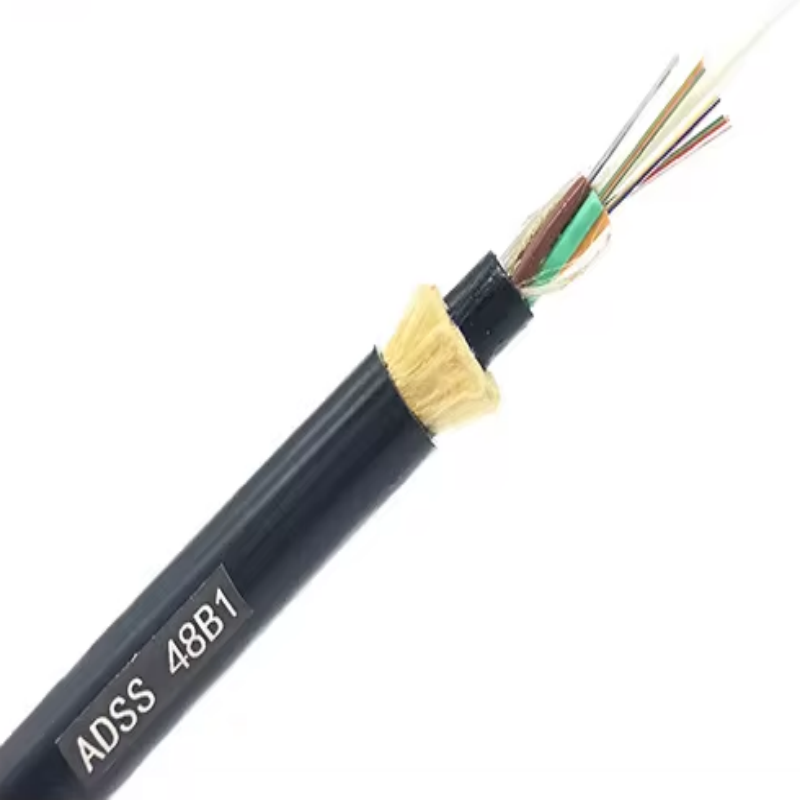

ADSS Fiber Optic Cable 48 Core – High-Performance Non-Metallic Solution for Modern Telecommunications Infrastructure This advanced ADSS fiber optic cable, featuring 48 cores, is engineered for reliable and efficient deployment in overhead power line environments where traditional metallic cables are not viable. Designed with a dielectric structure and non-conductive strength members, it eliminates risks associated with electrical interference while offering robust performance across extreme weather conditions. Ideal for utility companies, telecom providers, and infrastructure developers, this cable ensures seamless data transmission over long distances—up to 1000 meters per span—with minimal signal loss. Key Features: - Fiber Type: G652D single-mode fiber optimized for low attenuation at both 1310nm and 1550nm wavelengths - Core Count: 48 fibers within a flexible

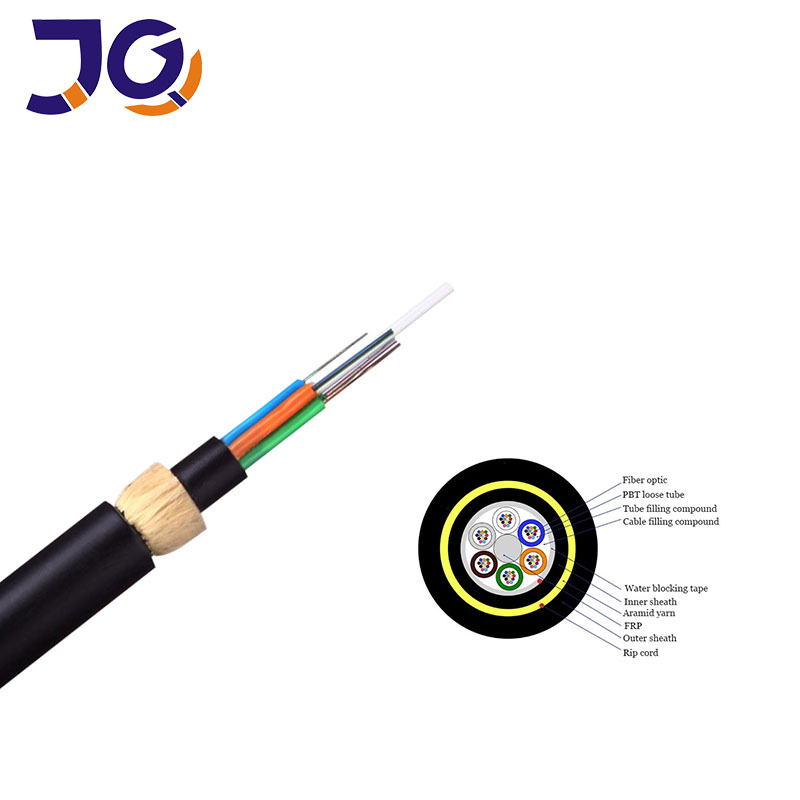

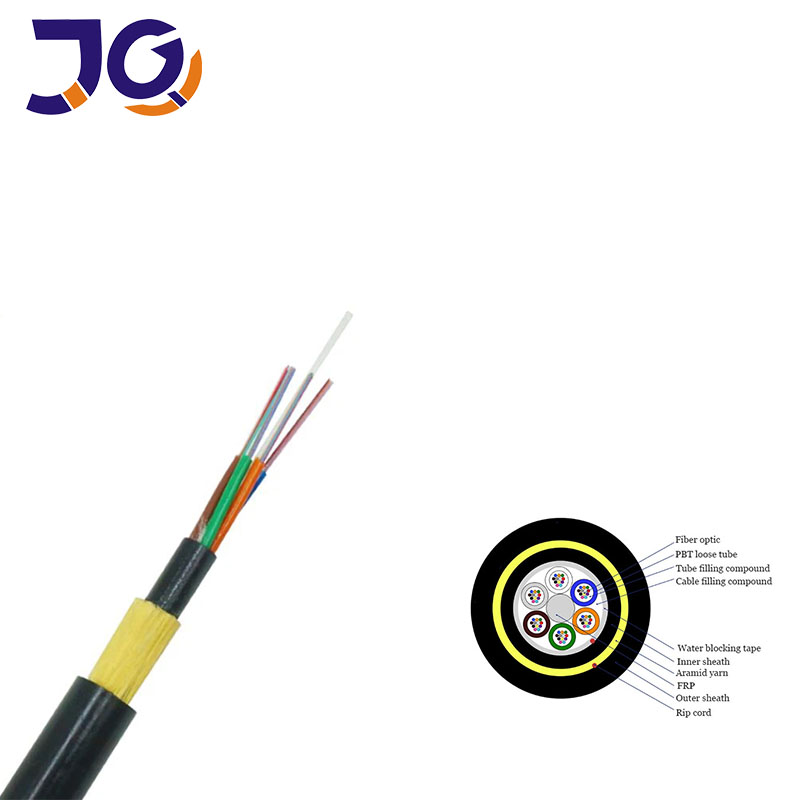

loose tube configuration for enhanced durability and bend resistance - Tensile Strength: Engineered with aramid yarn and FRP (Fiber-Reinforced Polymer) central strength member to support spans up to 1000m under varying environmental loads - Jacketing: Dual-layer protection using polyethylene (PE) inner sheath and AT (Anti-Tension) outer sheath for superior UV resistance, moisture barrier, and mechanical resilience - Electrical Compatibility: Rated for electric field exposure up to 25 kV, making it ideal for installation near high-voltage lines without risk of induced current or damage - Temperature Range: Stable operation from -40°C to +70°C, suitable for diverse global climates including arid deserts, humid tropics, and cold mountainous regions Detailed Description: The ADSS fiber optic cable combines lightweight construction with exceptional tensile strength, allowing for easy one-step installation on existing utility poles or towers. Its unique design integrates a central FRP core that provides structural integrity without introducing conductive elements—a critical advantage when working alongside energized power lines. The aramid yarn reinforcement adds flexibility during installation while maintaining long-term strain tolerance. Each loose tube houses individual optical fibers protected by gel filling, preventing water ingress and ensuring consistent signal quality even in harsh outdoor settings. With an attenuation coefficient as low as 0.35 dB/km at 1310nm and 0.22 dB/km at 1550nm, this cable supports high-speed internet, video surveillance, and smart grid communications with minimal latency or signal degradation. Use Cases: This fiber solution is widely adopted in rural broadband expansion projects, smart city initiatives, and utility-based communication networks. It's particularly effective for connecting remote substations, deploying fiber-to-the-home (FTTH) services along existing power infrastructure, and integrating fiber backhaul into mobile network towers. Whether deployed in urban areas requiring minimal disruption or in isolated locations demanding rugged reliability, the ADSS 48-core cable delivers unmatched versatility and future-proof scalability. Customer Feedback: Users consistently highlight its ease of handling, especially compared to conventional metallic ducted cables. Many operators note reduced labor costs due to simplified installation processes and fewer required permits for aerial deployments. Field engineers appreciate the cable’s resistance to environmental stressors such as wind, ice, and UV radiation, which translates into lower maintenance needs and extended service life. Frequently Asked Questions: What makes ADSS fiber different from other aerial cables? Unlike metallic cables, ADSS uses non-conductive materials like aramid and FRP, eliminating grounding issues and enabling safe installation near high-voltage power lines. This makes it ideal for use in electrified corridors where standard cables would pose safety hazards. Can I install this cable myself? Yes, provided you follow manufacturer guidelines and local regulations. The lightweight design and pre-terminated features allow skilled technicians to complete installations efficiently without specialized tools or heavy equipment. Is it suitable for all climates? Absolutely—it performs reliably in temperatures ranging from -40°C to +70°C and resists moisture, corrosion, and UV degradation, making it suitable for deployment in tropical, temperate, and arctic zones alike. How does it compare to buried fiber solutions? While underground cables offer some advantages in terms of physical protection, ADSS cables provide faster deployment, lower upfront costs, and easier access for repairs—all while avoiding trenching expenses and land-use conflicts. In summary, the ADSS fiber optic cable 48 core represents a modern, cost-effective, and highly durable option for any organization seeking to expand or upgrade their telecommunications backbone using existing overhead structures. Its combination of electrical safety, mechanical resilience, and low signal loss positions it as a preferred choice for global telecom and energy sector professionals.
