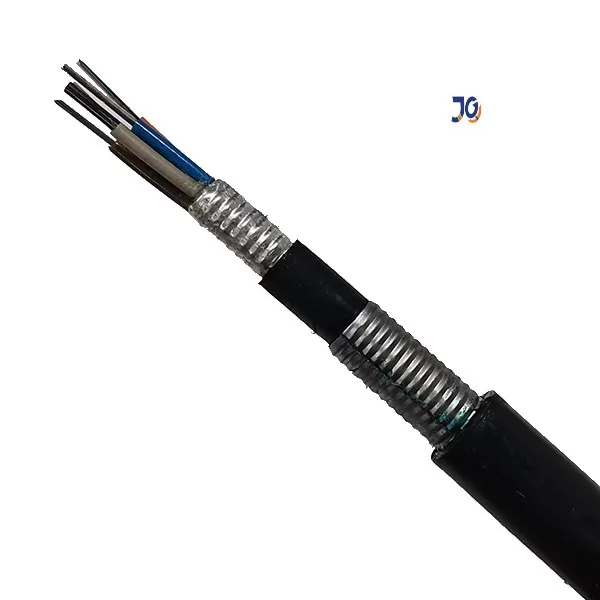

What is GYTA53 fiber optic cable?
GYTA53 is the steel tape armored open air fiber optic cable utilized for coordinate buried. single mode GYTA53 fiber optic cable and multimode GYTA53 fiber optic cables; fiber tallies from 2 to 432.
Applications
These folded steel tape and aluminum tape armored and twofold sheath cables are reasonable for establishment in unforgiving situations where mechanical affect on the cable is to be expected.e.g. in coordinate buried application. They are too reasonable for establishment in conduits where the rat resistance is to be anticipated or the dampness resistance is expected.
Features
Up to 432 fiber cores.
The free tube stranding innovation make the filaments have great auxiliary abundance length and permit the strands free development in the tube, which keeps the fiber stress-free whereas the cable is subjected to longitudinal stress.
Corrugated steel tape armored and twofold PE sheath giving fabulous smash resistance and rat resistance.
Metal quality part gives great strain performance.

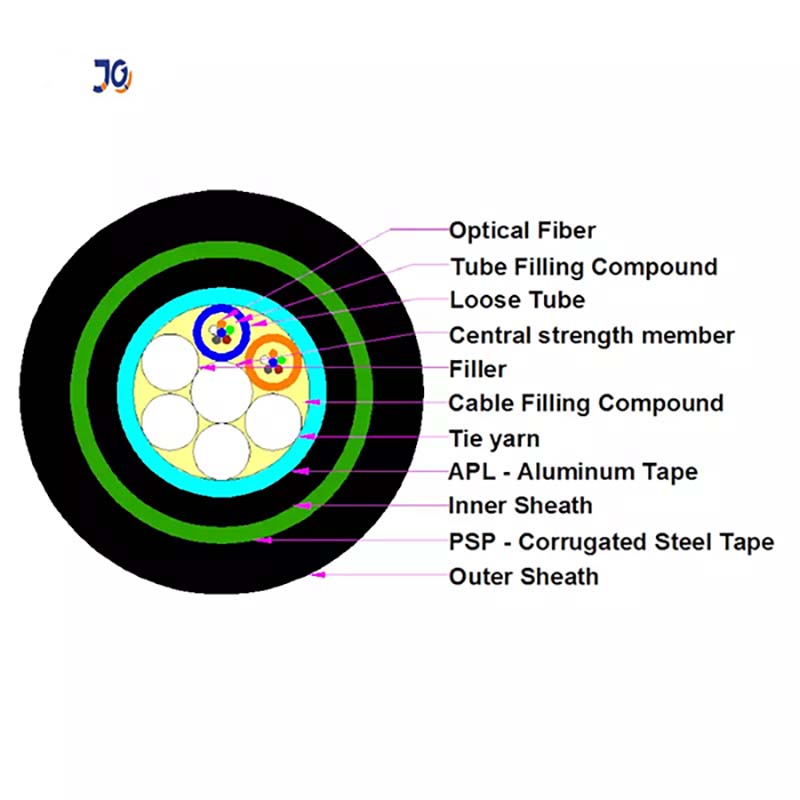

Description
1. PBT free tube of 24fibers
Tube number: 2 Tube thickness: 0.3±0.05mm Distance across: 2.1±0.1 um
Fiber (Fiber characteristic):
Cladding breadth: 125.0±0.1 Fiber characteristics: Distance across: 242±7 um
UV color fiber: Standard chromatogram
2. Filling Compound
3. Central Quality part: steel wire Distance across: 1.6mm
4. Filler bar: number: 3
5. APL: Aluminum Polyethylene Cover dampness barrier
6. Dark HDPE internal sheath
7. Water-blocking tape
8. PSP: Longitudinal folded steel tape covered with polyethylene on both sides
Corrugated steel Thickness: 0.4 ±0.015 Steel thickness: 0.15±0.015
9. PE external sheath
Jacket thickness: 1.8 ±0.20mm
Diameter: Cable Breadth: 12.5±0.30mm

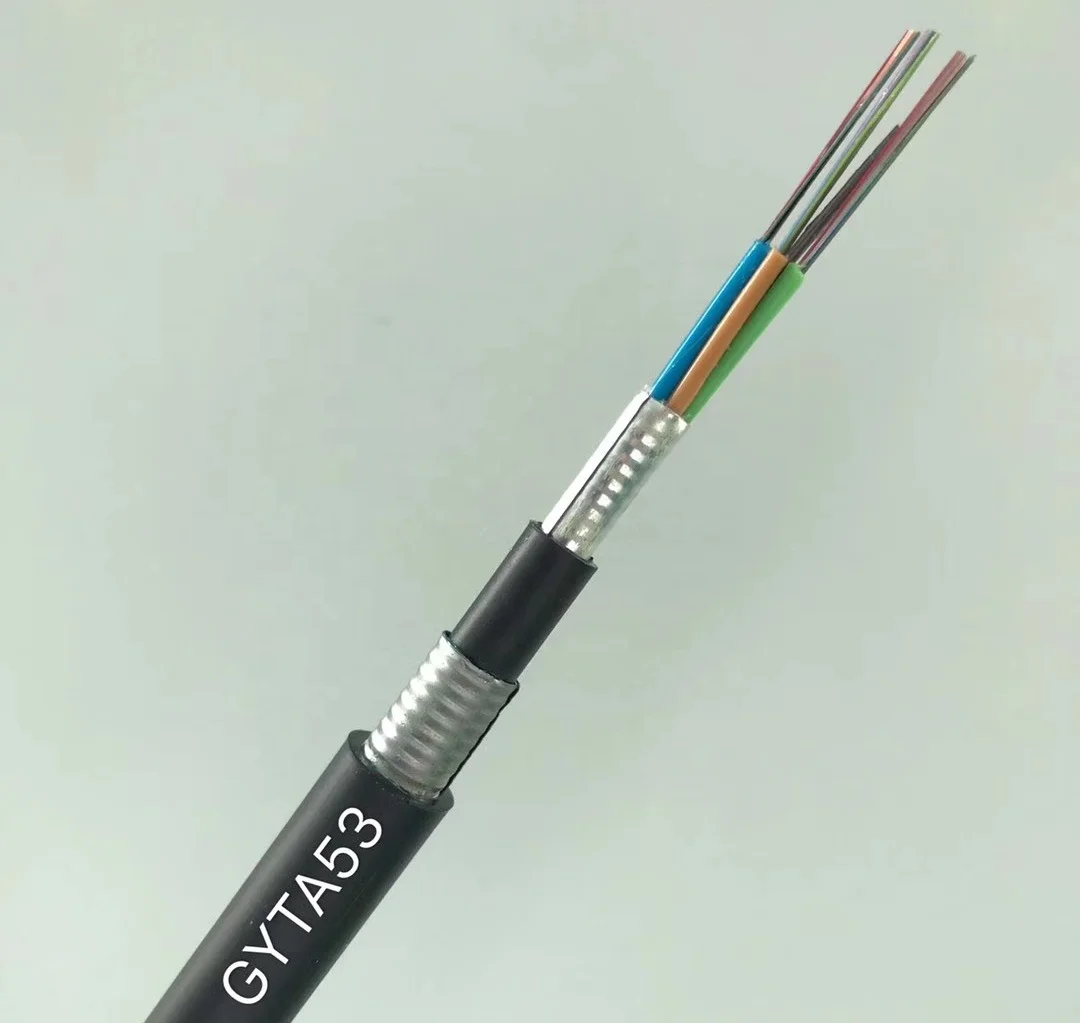

Outdoor GYTA53 Fiber Optic Cable with Layered Steel Protected Tape
Application: Channel and Ethereal, Coordinate Buried
Jacket: PE material
Usable in Channel or Aerial
Long-haul communication system
Junction communication system
Local region arrange systems
Outdoor GYTA53 Fiber Optic Cable with Layered Steel Protected Tape
Fiber optic cable GYTA53, 2~432 filaments, central quality part (steel), jam filled, fiber contained free tube and PP filler (in the event that essential) stranded, water blocking jam, copolymer coated aluminum tape, PE internal sheath, longitudinally secured by copolymer coated steel tape, PE external sheath.
Fiber Optic Cable GYTA53 Features
Low scattering and attenuation
Proper plan, exact control for fiber abundance length and particular stranding prepare render the cable great mechanical and natural properties
Double-jacket structure make cable have decent properties of dampness resistance and smash resistance
With little cable breadth, light cable weight, effortlessly to lay
Operating Temperature : -40 ~ +60 C

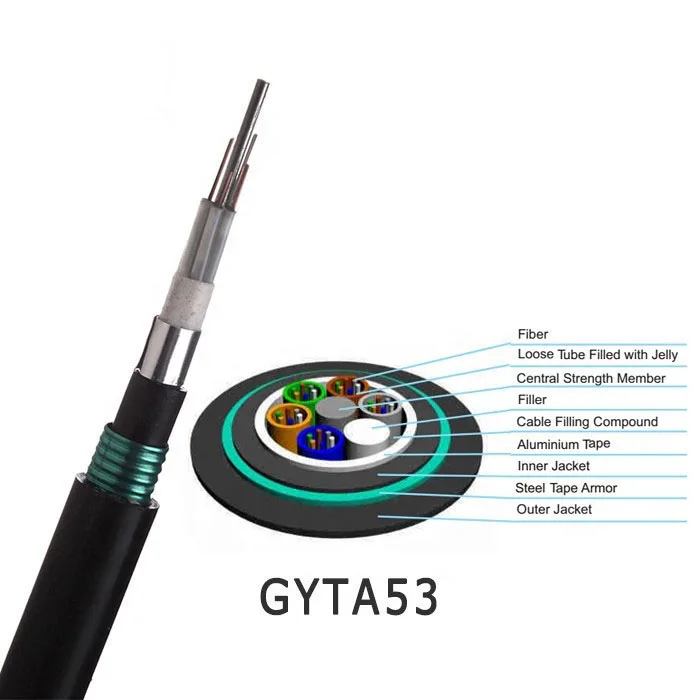

Structure of GYTA53 fiber optic cable
There are various highlights of the GYTA53 fiber optic cables and you can effortlessly recognize it in the advertise. Be that as it may, the most distinguished characteristics include:
low scattering and attenuation
properly planned with exact control for fiber abundance length and unmistakable stranding handle renders the cable great mechanical and natural properties
The GYTA53 fiber optic cables are moreover characterized with Double-jacket structure make cable have pleasant properties of dampness resistance and smash resistance.
The GYTA53 fiber optic cables has a little cable distance across, light cable weight, effortlessly to lay
It works superior beneath Temperature : -40 ~ +60 C
