A few 10 billion computerized bits can be transmitted per moment along an optical fiber interface in a commercial organize, sufficient to carry tens of thousands of phone calls. Hair-thin filaments comprise of two concentric layers of high-purity silica glass the center and the cladding, which are encased by a defensive sheath. Light beams balanced into computerized beats with a laser or a light-emitting diode move along the center without entering the cladding.
The light remains kept to the center since the cladding has a lower refractive index—a degree of its capacity to twist light. Refinements in optical strands, along with the improvement of modern lasers and diodes, may one day permit commercial fiber-optic systems to carry trillions of bits of information per second.
Total inner refection limits light inside optical filaments (comparative to looking down a reflect made in the shape of a long paper towel tube). Since the cladding has a lower refractive record, light beams reflect back into the center if they experience the cladding at a shallow point (ruddy lines). A beam that surpasses a certain "basic" point get away from the fiber (yellow line).
STEP-INDEX MULTIMODE FIBER has a expansive center, up to 100 microns in distance across. As a result, a few of the light beams that make up the advanced beat may travel a coordinate course, though others crisscross as they bounce off the cladding. These elective pathways cause the distinctive groupings of light beams, alluded to as modes, to arrive independently at a getting point. The beat, an total of diverse modes, starts to spread out, losing its well-defined shape. The require to take off dispersing between beats to anticipate covering limits transfer speed that is, the sum of data that can be sent. Thus, this sort of fiber is best suited for transmission over brief separations, in an endoscope, for instance.
GRADED-INDEX MULTIMODE FIBER contains a center in which the refractive list decreases continuously from the center hub out toward the cladding. The higher refractive list at the center makes the light beams moving down the pivot progress more gradually than those close the cladding. Moreover, or maybe than zig-zagging off the cladding, light in the center bends helically since of the evaluated record, diminishing its travel separate. The abbreviated way and the higher speed permit light at the fringe to arrive at a recipient at almost the same time as the moderate but straight beams in the center hub. The result: a computerized beat endures less scattering. These filaments regularly ended up the physical medium for local-area networks.
SINGLE-MODE FIBER has a contract center (eight microns or less), and the record of refraction between the center and the cladding changes less than it does for multimode filaments. Light hence voyages parallel to the hub, making small beat scattering. Phone and cable tv systems introduce millions of kilometers of this fiber each year.
1 - Two fundamental cable plans are:
Loose-tube cable, utilized in the larger part of outside-plant establishments in North America, and tight-buffered cable, fundamentally utilized interior buildings.
The measured plan of loose-tube cables ordinarily holds up to 12 filaments per buffer tube with a most extreme per cable fiber check of more than 200 filaments. Loose-tube cables can be all-dielectric or alternatively armored. The secluded buffer-tube plan licenses simple drop-off of bunches of strands at halfway focuses, without interferometer with other secured buffer tubes being directed to other areas. The loose-tube plan too makes a difference in the distinguishing proof and organization of filaments in the system.
Single-fiber tight-buffered cables are utilized ase ponytails, fix strings and jumpers to end loose-tube cables specifically into opto-electronic transmitters, recipients and other dynamic and inactive components.
Multi-fiber tight-buffered cables too are accessible and are utilized fundamentally for elective directing and dealing with adaptability and ease inside buildings.
2 - Loose-Tube Cable

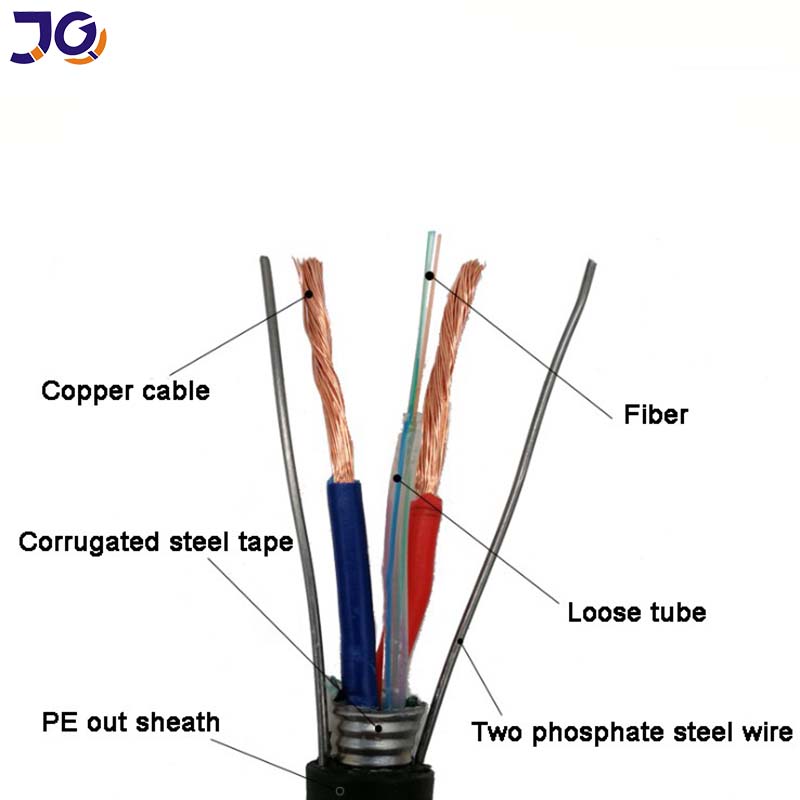

In a loose-tube cable plan, color-coded plastic buffer tubes house and ensure optical filaments. A gel filling compound blocks water infiltration. Overabundance fiber length (relative to buffer tube length) protecting filaments from stresses of establishment and natural stacking. Buffer tubes are stranded around a dielectric or steel central part, which serves as an anti-buckling element.
The cable center, regularly encompassed by aramid yarn, is the essential pliable quality part. The external polyethylene coat is expelled over the center. If armoring is required, a folded steel tape is shaped around a single jacketed cable with an extra coat expelled over the armor.
Loose-tube cables ordinarily are utilized for outside-plant establishment in ethereal, channel and direct-buried applications.
3 - Tight-Buffered Cable

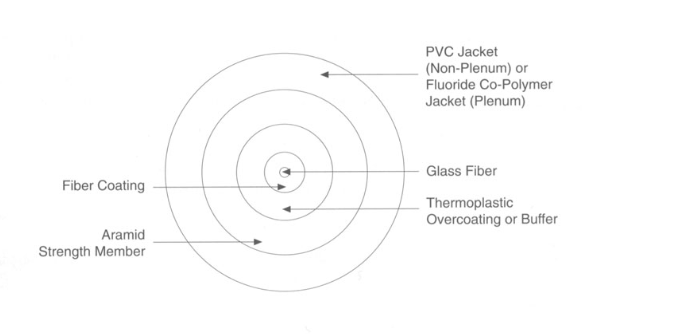

With tight-buffered cable plans, the buffering fabric is in coordinate contat with the fiber. This plan is suited for "jumper cables" which interface exterior plant cables to terminal gear, and too for connecting different gadgets in a premises network.
Multi-fiber, tight-buffered cables frequently are utilized for intra-building, risers, common building and plenum applications.
The tight-buffered plan gives a rough cable structure to ensure person strands amid taking care of, steering and connectorization. Yarn quality individuals keep the malleable stack absent from the fiber.
As with loose-tube cables, optical details for tight-buffered cables too ought to incorporate the greatest execution of all filaments over the working temperature run and life of the cable. Midpoints ought to not be acceptable.
Over the past few a long time, fiber optic cable has gotten to be more reasonable. It's presently utilized for handfuls of applications that require total insusceptibility to electrical impedances. Fiber is perfect for tall data-rate frameworks such as FDDI, mixed media, ATM, or any other organize that requires the exchange of expansive, time-consuming information records.
Single-mode or multimode?
Single-mode fiber gives you a higher transmission rate and up to 50 times more separate than multimode, but it too costs more. Single-mode fiber has a much littler center than multimode fiber-typically 5 to 10 microns. As it were a single lightwave can be transmitted at a given time. The little center and single lightwave essentially kill any mutilation that might result from covering light beats, giving the slightest flag weakening and the most noteworthy transmission speeds of any fiber cable type.
Multimode fiber gives you tall transmission capacity at tall speeds over long separations. Lightwaves are scattered into various ways, or modes, as they travel through the cable's center. Ordinary multimode fiber center distances across are 50, 62.5, and 100 micrometers. In any case, in long cable runs (more prominent than 3000 feet [914.4 ml), numerous ways of light can cause flag mutilation at the getting conclusion, coming about in an vague and inadequate information transmission.
Testing and certifying fiber optic cable.
If you're utilized to certifying Category 5 cable, you'll be wonderfully shocked at how simple it is to certify fiber optic cable since if s resistant to electrical obstructions. You as it were require to check a few measurements:
Weakening (or decibel loss)-Measured in dB/km, this is the diminish of flag quality as it voyages through the fiber optic cable. ? Return loss-The sum of light reflected from the distant conclusion of the cable back to the source. The lower the number, the way better. For illustration, a perusing of -60 dB is superior than -20 dB.
Graded refractive index-Measures how much light is sent down the fiber. This is commonly measured at wavelengths of 850 and 1300 nanometers. Compared to other working frequencies, these two ranges surrender the most reduced natural control misfortune. (NOTE This is substantial for multimode fiber only.)
Propagation delay-This is the time it takes a flag to travel from one point to another over a transmission channel.
Time-domain reflectometry (TDR)-Transmits high-frequency beats onto a cable so you can look at the reflections along the cable and confine flaws.
There are numerous fiber optic analyzers on the showcase nowadays. Fundamental fiber optic analyzers work by sparkling a light down one conclusion of the cable. At the other conclusion, there's a recipient calibrated to the quality of the light source. With this test, you can degree how much light is going to the other conclusion of the cable. For the most part, these analyzers grant you the comes about in decibels (dB) misplaced, which you at that point compare to the misfortune budget. If the measured misfortune is less than the number calculated by your misfortune budget, your establishment is good.
Newer fiber optic analyzers have a wide run of capabilities. They can test both 850- and 1300-nm signals at the same time and can indeed check your Peak for compliance with particular benchmarks.
When to select fiber optic？
Although fiber optic cable is still more costly than other sorts of cable, it's favored for today's high-speed information communications since it dispenses with the issues of twisted-pair cable, such as near-end crosstalk (Another), electromagnetic impedances (EIVII), and security breaches.
