anti-rodent Fiber Optic Cable ARSS

Engineered for robust performance in demanding environments, the 24-core Armored Anti-Rodent Fiber Optic Cable ARSS is a premium solution designed to protect fiber infrastructure from physical damage, environmental stress, and wildlife threats. This armored cable combines advanced materials and proven design principles to ensure long-term signal integrity, making it ideal for utility networks, telecom installations, and critical infrastructure projects across global markets.

Key Features

• Steel Tape Armor: Provides superior resistance to crushing forces and mechanical impact, ensuring durability during installation and service life.
• Aramid Yarn Reinforcement: Offers high tensile strength (up to 2500N), minimizing risk of breakage under tension or extreme weather conditions.

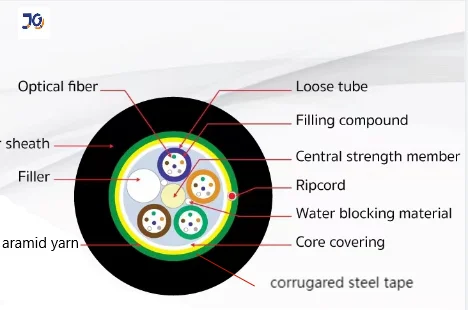

• loose tube Design: Protects individual fibers from moisture, temperature fluctuations, and microbending losses—critical for maintaining optical performance over time.
• Anti-Rodent Protection: The outer sheath includes rodent-resistant compounds that deter chewing and gnawing, a common issue in rural and tropical regions.

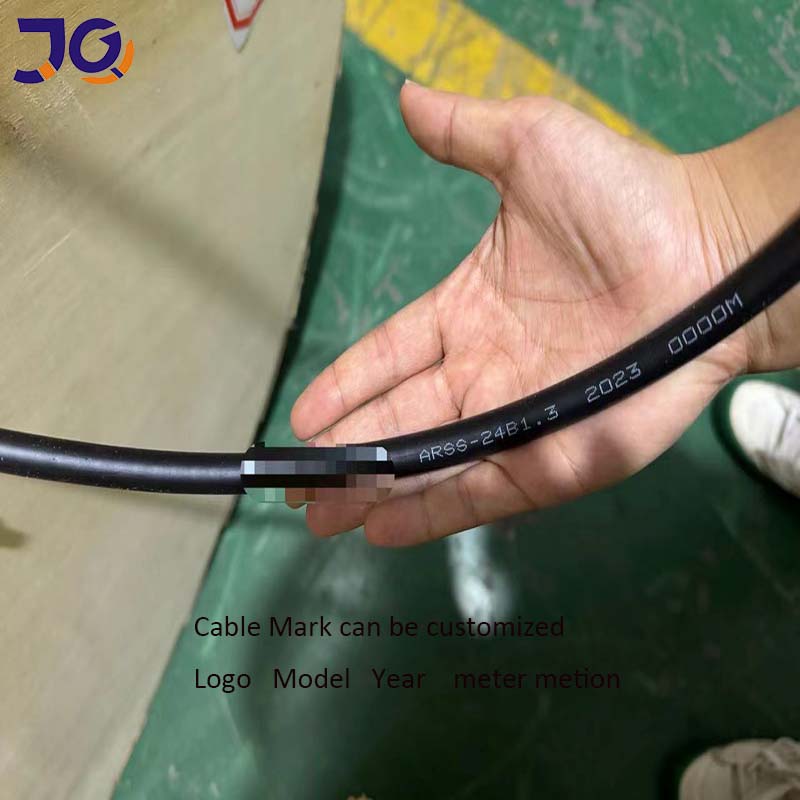

• Color Stripe Identification: Optional colored extrusion along the full length allows easy visual identification during deployment and maintenance.
• Compliance with International Standards: Meets IEC 60793, IEC 60794, TIA/EIA, and ITU-T specifications for quality, safety, and interoperability.

Detailed Specifications

The ARSS series offers multiple core configurations, including 12 to 120 fibers, with a standardized diameter ranging from 12mm to 17mm. For the 24-core variant, the cable weighs approximately 100 kg/km, supports up to 1800 Newtons of tensile load, and withstands crush loads of 3400 N. Its minimum bending radius is 20 times its outer diameter during installation and 15 times when fixed—a crucial factor for safe routing around poles, ducts, or conduits. Operating within a wide temperature range of -10°C to +70°C, this cable performs reliably in both arctic and desert climates.

Applications

This armored fiber optic cable is commonly deployed in overhead line applications such as ADSS (All-Dielectric Self-Supporting) systems, where it runs alongside high-voltage power lines without electrical grounding. It’s also suitable for direct burial, conduit installations, and aerial deployments in areas prone to rodent activity—including agricultural zones, forested regions, and urban outskirts. Whether used by telecom providers, energy utilities, or government agencies, the ARSS cable delivers dependable connectivity for broadband expansion, smart grid monitoring, and industrial IoT networks.

User Feedback

Field engineers report consistent success with the ARSS model, particularly appreciating its resilience in harsh terrain and reduced need for repairs. One utility company noted a significant drop in fiber failures after switching to this armored solution in rodent-infested areas. Another user highlighted the ease of handling due to the balanced weight-to-strength ratio, which simplifies logistics and reduces labor costs during large-scale rollouts.

Frequently Asked Questions

What makes this cable resistant to rodents? The outer jacket incorporates specialized polymers and additives that make it unappealing to animals while remaining flexible enough for installation. Unlike basic cables, this design prevents structural compromise from gnawing.

Can I order custom lengths? Yes, standard spool lengths are 1000 meters, but longer reels up to 4000 meters are available upon request. Custom packaging options can be arranged based on project requirements.

Is it suitable for underground use? Absolutely—it meets burial standards for moisture resistance and mechanical protection, especially when installed in PVC conduits or directly buried in soil.

How long does delivery take? Sample orders typically ship within 3 business days; bulk shipments arrive within 10 working days. All units are packed in non-returnable wooden drums to prevent damage during transit.
