12 24 Core OPLC Opticall Fiber Composite Cable

GYTS OPLC Hybrid Fiber Optic Cable – High-Capacity, Dual-Function Solution for Modern Infrastructure

Engineered for efficiency and performance, the GYTS OPLC (Optical Power Line Composite) cable integrates high-speed fiber optics with electrical conductors in a single, compact design. This innovative hybrid solution eliminates the need for separate power and communication lines, streamlining installation processes and significantly reducing labor and material costs across utility networks, telecom deployments, and smart grid systems worldwide.

Available in 4 to 24 fiber core configurations—such as 24-core variants with dual copper power wires—this cable supports diverse transmission technologies including single-mode and multi-mode fibers, ensuring scalability from local area networks to long-haul backbones. Designed for both overhead and underground installations, it delivers robust mechanical strength, excellent bending flexibility, and reliable operation under varying environmental conditions—from extreme cold to high ambient temperatures typical in power infrastructure environments.

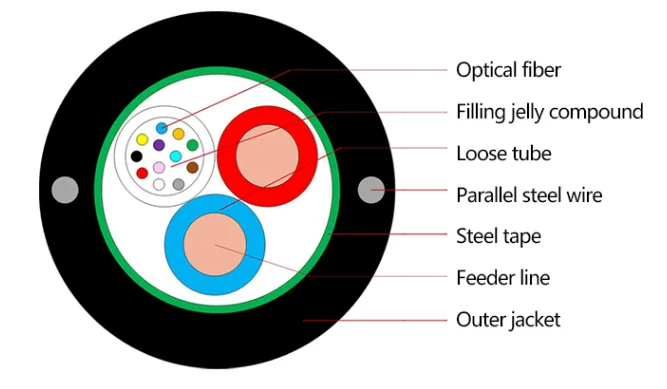

Key features include superior tensile resistance (600 N long-term / 1500 N short-term), strong crush resistance (300 N long-term / 1000 N short-term), and an outer diameter ranging from 10.5 mm to 11.2 mm depending on configuration. The structured loose tube design houses up to 12 fibers per tube, enabling organized fiber management while maintaining low signal loss and optimal bandwidth capacity. With a weight of approximately 160–200 kg/km, this composite cable balances durability with manageable handling during deployment.

This versatile product serves critical roles in outdoor distribution systems, connecting substations to buildings, linking instruments within industrial facilities, and supporting optical communication equipment rooms. It is ideal for aerial installations along utility poles, buried conduit applications, or direct burial in challenging terrains. Whether used for fiber-to-the-home (FTTH) projects, remote monitoring systems, or backbone links between data centers, the GYTS OPLC ensures seamless integration of power delivery and high-speed data transfer.

Users praise its ability to reduce project complexity by combining two essential utilities into one cable, minimizing trenching, pole mounting, and maintenance efforts. Its proven reliability in harsh climates makes it a preferred choice for energy providers, telecom operators, and government infrastructure programs seeking cost-effective, future-ready solutions.

Frequently asked questions often center around compatibility with existing power grids, ease of termination at splice points, and performance under thermal stress. Unlike traditional fiber-only cables, this hybrid unit maintains consistent optical integrity even when exposed to continuous heat cycles from adjacent power conductors. Installation guidelines recommend using specialized tools for splicing and proper strain relief techniques to maximize lifespan and minimize downtime.
