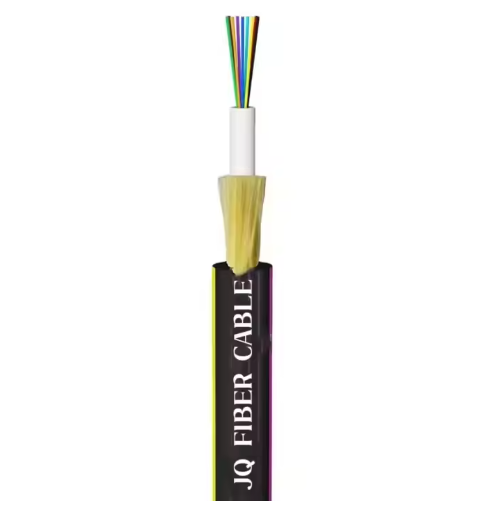

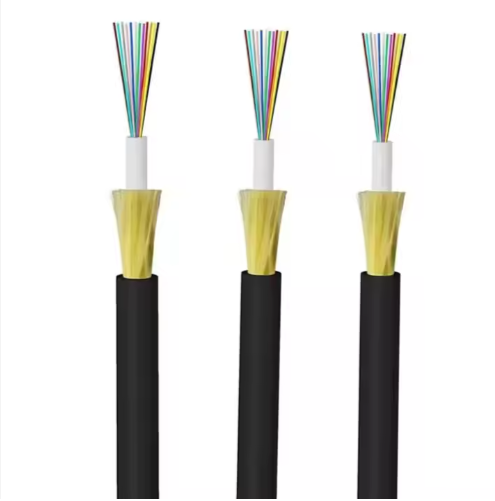

Fiber Optic Cable with Glass Yarn – High-Performance Indoor/Outdoor Solution for Modern Communication Networks This premium fiber optic cable combines durability, flexibility, and high transmission efficiency, making it an ideal choice for both indoor and outdoor deployments. Designed with a uni-

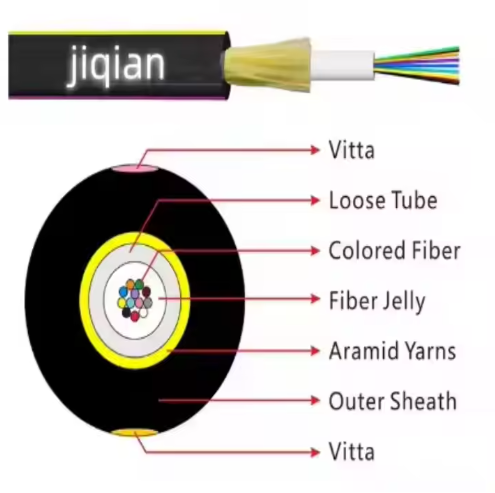

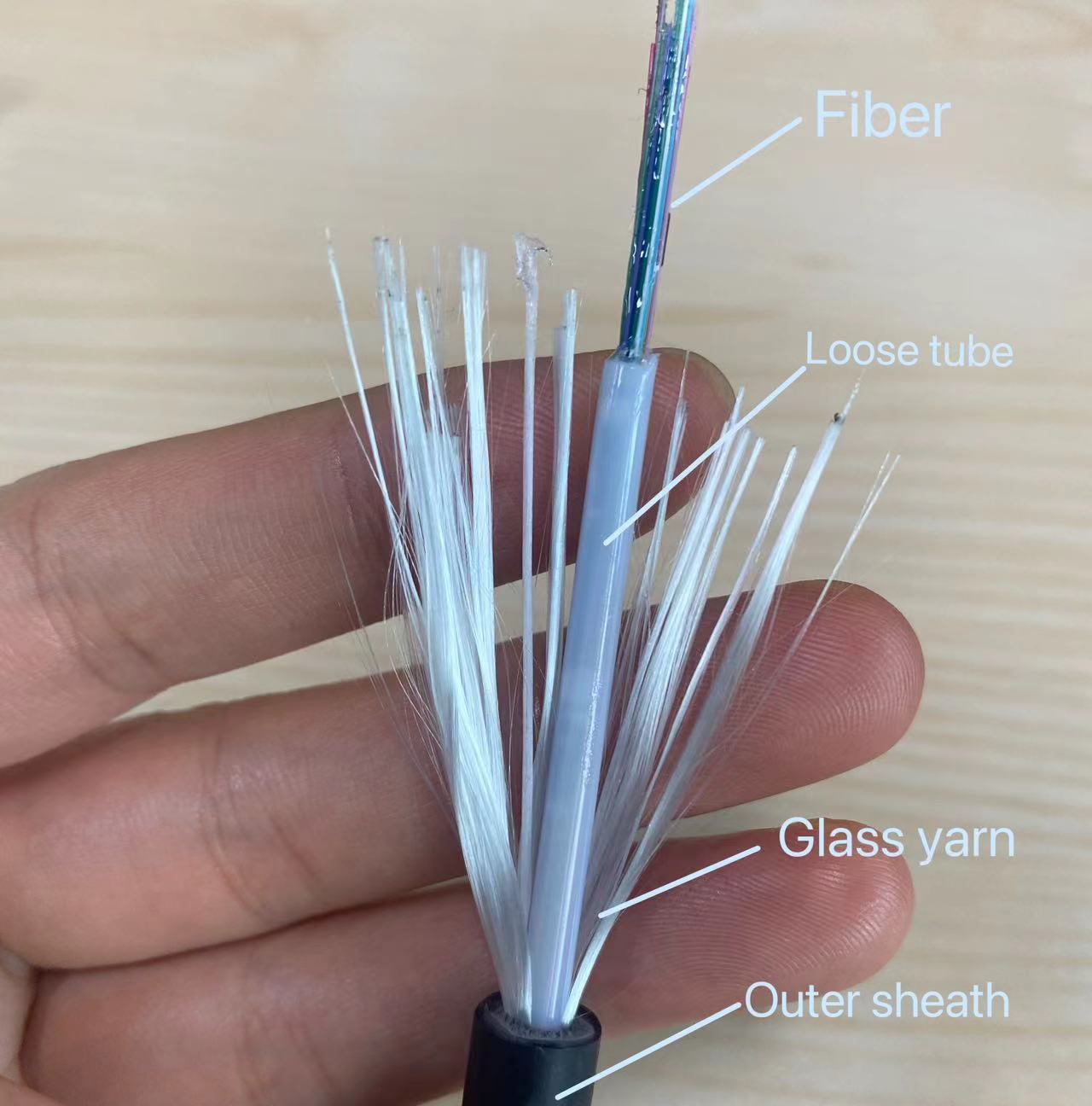

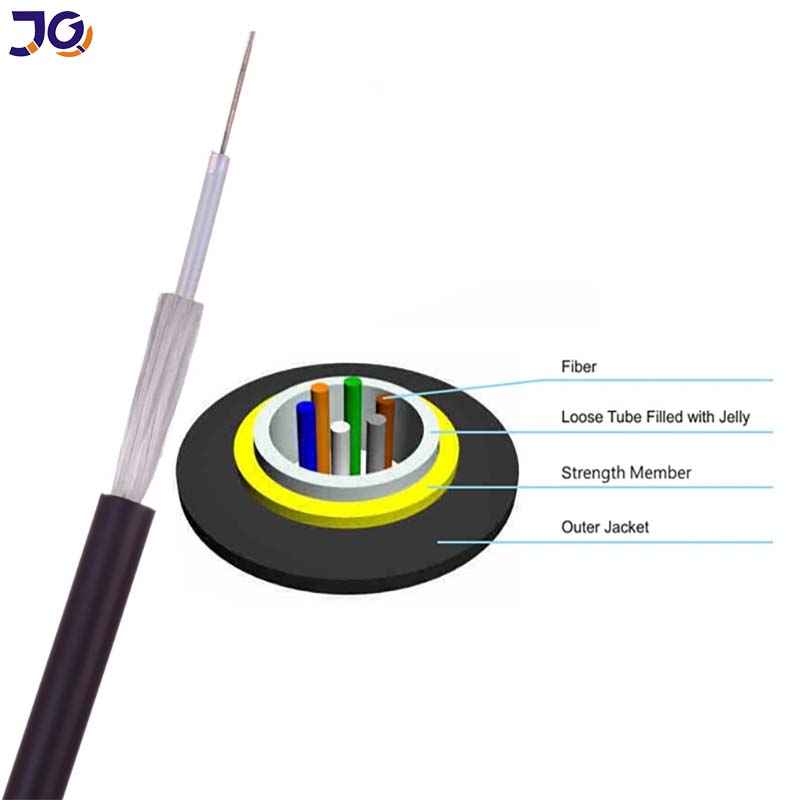

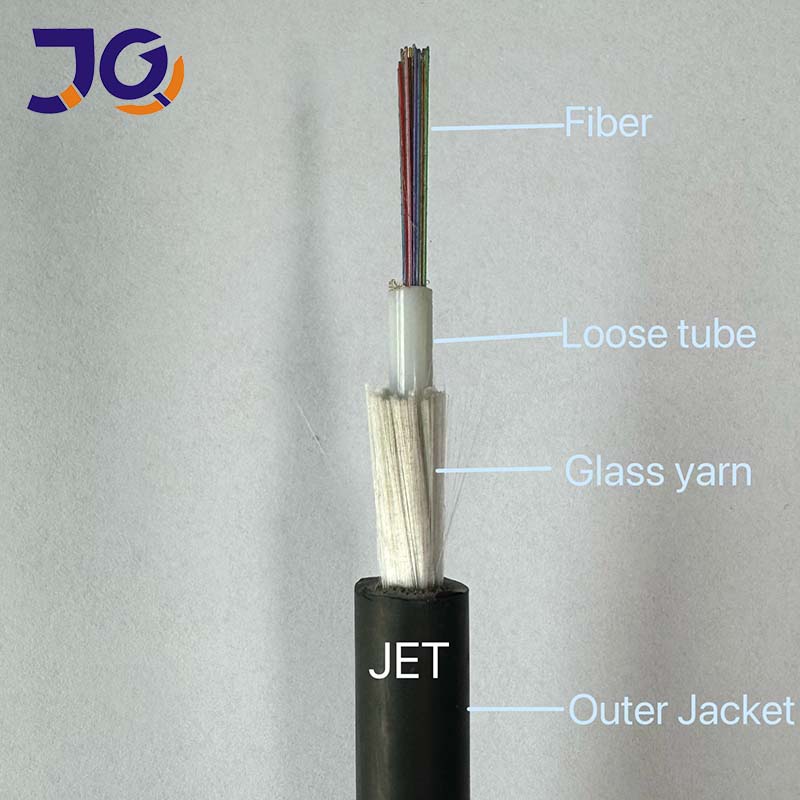

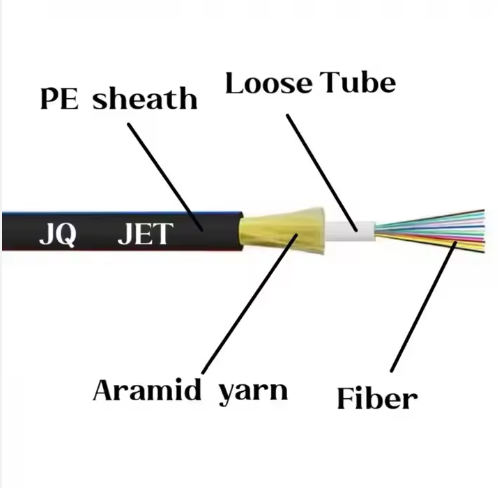

loose tube gel-filled structure, the cable ensures optimal protection for 2 to 24 fibers while maintaining excellent mechanical stability and environmental resistance. The inclusion of fiberglass-reinforced yarn as the central strength member enhances tensile performance and provides robust protection against rodents, moisture ingress, and physical stress—key factors in long-term reliability. Key Features: - Uni-tube gel-filled design for superior fiber isolation and protection - Fiberglass-reinforced strength member for enhanced rodent resistance and mechanical durability - UV-resistant polyethylene (PE) outer jacket for prolonged outdoor exposure - Compatible with G.652, G.655, 50/125 µm, and 62.5/125 µm fiber types - Low attenuation values across multiple wavelengths (850 nm, 1300 nm, 1310 nm, 1550 nm) - High bandwidth capabilities up to 500 MHz·km at 850 nm and 1300 nm - Excellent crush resistance and tensile strength for safe installation in conduits or direct burial Detailed Description: Engineered for modern telecommunications infrastructure, this fiber-optic cable delivers consistent signal integrity over extended distances. With attenuation levels as low as 0.22 dB/km at 1550 nm, it supports high-speed data transfer essential for FTTH (Fiber to the Home), FTTB (Fiber to the Building), and other FTTx applications. The cable’s numerical aperture ranges from 0.200±0.015 NA to 0.275±0.015 NA depending on the fiber type, ensuring compatibility with various optical transceivers and network equipment. Its cut-off wavelength is below 1260 nm for standard single-mode fibers and under 1450 nm for dispersion-shifted variants, guaranteeing reliable operation in diverse deployment scenarios. The compact diameter (7.0–8.0 mm) and lightweight design (55 kg/km) make installation easier in tight spaces such as ducts, risers, or aerial trays. Short-term tensile strength reaches 1000 N/100mm, while long-term resilience remains at 500 N/100mm—ideal for pulling through complex pathways without compromising fiber integrity. Crush resistance of 800 N/100mm short term and 400 N/100mm long term further confirms its suitability for harsh environments like underground conduits or industrial settings. Use Cases: Perfect for inter-building communication systems, campus networks, metropolitan area networks (MANs), and telecom provider installations. Whether deployed in residential areas, commercial buildings, or remote locations, this versatile cable adapts seamlessly to indoor wiring needs and outdoor exposure challenges. It meets international standards for fiber optic performance, including ITU-T G.652 and G.655 specifications, and is commonly used in smart city initiatives, enterprise backbone links, and fiber-based broadband rollouts. Customer Feedback: Users consistently praise the cable’s ease of handling, exceptional durability in extreme weather conditions, and minimal signal loss even after years of service. Many highlight its value in reducing maintenance costs due to the gel-filled tube preventing water penetration and the fiberglass core resisting damage during installation. Installers appreciate the clean, professional finish and the ability to pull the cable through existing ducts without damaging internal fibers. Frequently Asked Questions: What makes this fiber cable suitable for both indoor and outdoor use? Its UV-stable PE jacket and gel-filled tube provide waterproofing and resistance to temperature fluctuations, making it ideal for environments ranging from office buildings to roadside utility poles. How does the glass yarn strength member improve performance? Unlike traditional steel or aramid yarns, fiberglass offers superior corrosion resistance and eliminates electromagnetic interference, enhancing safety and longevity in sensitive applications. Can this cable be directly buried? Yes, thanks to its rugged construction and water-blocking properties, it can be safely installed underground without additional conduit protection. Is it compatible with existing fiber optic termination tools? Absolutely—it follows industry-standard dimensions and connector types, allowing seamless integration with SC, LC, ST, and other common connectors used globally.
