GYFTY optic fiber cable 96core Price

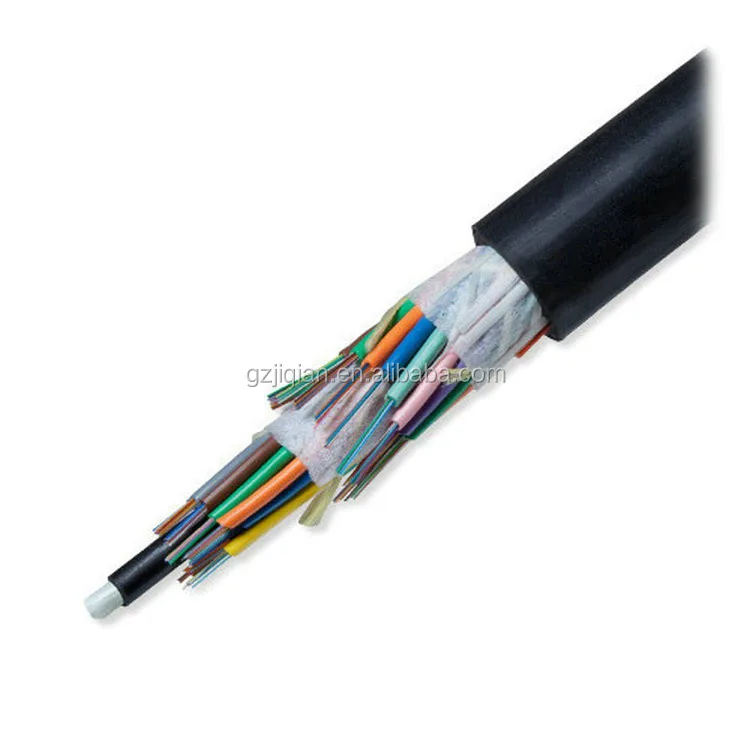

GYFTY Stranded loose tube fiber optic cable – High-Density, Armored Solution for Robust Outdoor Deployments

Engineered for demanding environments, the GYFTY stranded Loose Tube Fiber optic cable delivers exceptional performance in long-haul and distribution networks. With a capacity ranging from 2 to 288 fibers, this armored outdoor cable is ideal for inter-building communication backbones and underground installations where durability and signal integrity are critical. Its design integrates advanced materials and structural engineering to ensure reliable data transmission across diverse geographic conditions.

Key features include a gel-filled multi-loose tube construction that isolates each fiber from mechanical stress and moisture ingress, preserving optical clarity over time. The central strength member is composed of fiberglass-reinforced plastic (FRP), offering high tensile resistance while maintaining flexibility during installation. A corrugated steel tape armor layer provides superior crush protection—essential for direct burial or conduit placement—while the outer jacket is made of UV-resistant black polyethylene (PE), ensuring longevity under harsh sunlight exposure.

The cable’s modular architecture supports scalable configurations: up to 6 fibers per tube in smaller counts (2–36), and up to 12 fibers per tube in higher densities (38–288). For instance, a 96-fiber configuration has a nominal diameter of 12.6 mm and weighs approximately 130 kg/km, with an allowable tensile load of 1500 N and crush resistance of 1000 N/100mm—ideal for rugged terrain and urban infrastructure projects. Each fiber strand is color-coded according to ITU-T standards, simplifying identification during splicing and termination processes.

This product excels in applications such as telecommunications backbone systems, metropolitan area networks (MANs), and FTTH deployments where environmental resilience matters. Whether installed in ducts, conduits, or directly buried, the GYFTY cable maintains consistent performance regardless of temperature fluctuations or soil pressure. It meets international compliance benchmarks like IEC 60794-1 and ITU-T G.652, making it suitable for global deployment beyond China and its territories.

Customers worldwide praise its robustness in challenging climates—from desert regions to coastal zones—where traditional cables often fail due to thermal expansion or corrosion. Engineers appreciate the ease of handling and low attenuation values, which reduce signal loss over extended distances. While some users note initial setup complexity for large-scale installations, the long-term reliability and minimal maintenance requirements outweigh these minor learning curves.

Common questions include how it compares to other armored cables like ADSS or OFNP-rated types. Unlike aerial designs, GYFTY is specifically optimized for ground-level use with enhanced mechanical protection. Compared to non-armored alternatives, it offers significantly better performance in areas prone to rodent damage or heavy vehicle traffic. For users seeking a future-proof solution for both current and upcoming network demands, this cable represents a smart investment in infrastructure longevity.

Product Categories : Outdoor Fiber Optic Cable > Stranded Loose Tube Cable
