Steel Wire Reinforced GYXTW
unitube fiber Cable – High-Performance Outdoor Singlemode Solution for Reliable Long-Distance Data Transmission This robust and future-ready
Outdoor Fiber Optic Cable is engineered for demanding telecommunications environments. The GYXTW unitube fiber cable combines durability, performance, and ease of installation, making it a preferred choice for service providers deploying high-speed broadband networks across diverse terrains. With its central

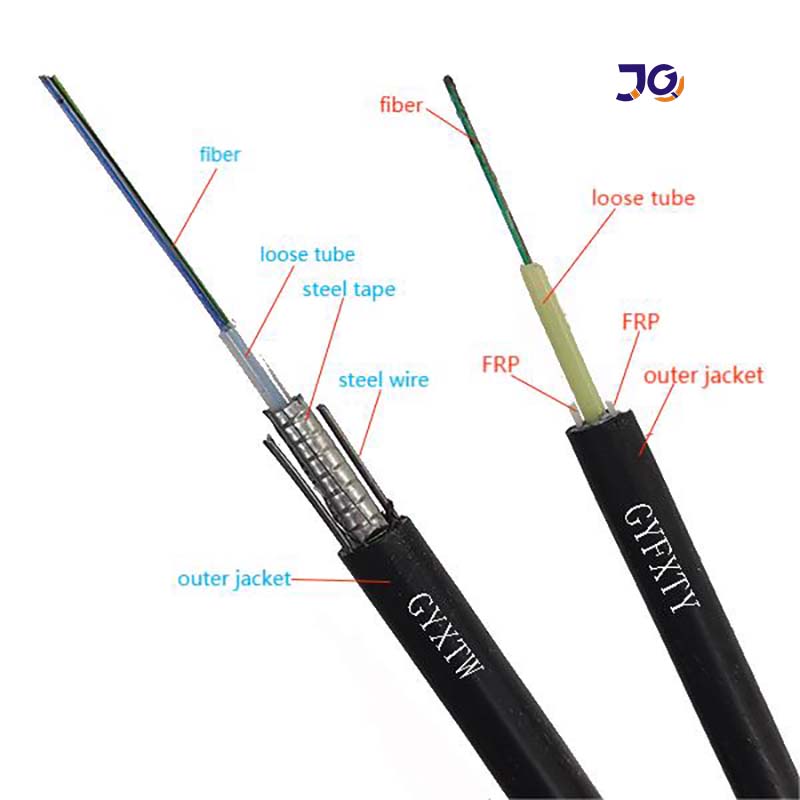

loose tube design and water-blocking compound, this 8-core singlemode optical fiber solution ensures exceptional signal integrity over extended distances while resisting environmental stressors like moisture, temperature fluctuations, and mechanical strain. Key Features: - Central strength member made from galvanized steel wire provides superior tensile resistance—600N long-term tension rating and 1500N short-term load capacity. - Water-blocking technology using gel-filled loose tubes prevents longitudinal water ingress, enhancing reliability in wet or humid climates. - Low attenuation at both 1310nm (≤0.35 dB/km) and 1550nm (≤0.22 dB/km) wavelengths enables efficient data transfer with minimal signal loss. - Lightweight yet rugged construction with a polyethylene (PE) outer sheath or flame-retardant material option for enhanced safety in various installations. - Compact diameter range (6.0–9.0 mm) supports easy handling during aerial, duct, or direct burial deployments without compromising structural integrity. Detailed Description: The GYXTW fiber optic cable features a unique unitube architecture where eight individual optical fibers are housed within a single central buffer tube. Each fiber is coated with a protective 250μm layer and surrounded by a waterproof gel that eliminates moisture penetration—a critical factor for outdoor applications. The inclusion of a steel wire core adds mechanical reinforcement, allowing the cable to withstand harsh conditions such as strong winds, ice loading, and thermal expansion. Its crush-resistant properties (1000N long-term, 1500N short-term) ensure consistent performance even under heavy pressure from soil or equipment. Designed for modern telecom infrastructure, this cable supports high-bandwidth services including FTTH, enterprise connectivity, and backhaul links, delivering stable transmission characteristics regardless of deployment environment. Ideal Applications: Perfect for
outdoor fiber-to-the-home (FTTH), metropolitan area networks (MANs), and rural broadband expansions, the GYXTW cable excels in overhead pole-mounted setups, underground conduits, and direct burial scenarios. Whether used in urban centers or remote locations, its resistance to UV exposure, chemical degradation, and rodent damage makes it an ideal candidate for future-proof network rollouts. Engineers and installers appreciate its flexibility during pulling operations, reduced microbending losses, and compatibility with standard termination tools and fusion splicers. Customer Feedback: Users consistently highlight the cable’s dependability in challenging weather conditions and its seamless integration into existing fiber networks. Many praise the excellent return on investment due to low maintenance needs and extended lifespan. Installers often note how the lightweight design simplifies logistics and reduces labor costs compared to traditional copper-based alternatives. Frequently Asked Questions: What makes the GYXTW cable suitable for outdoor use? Its water-blocking gel, UV-stable PE jacket, and steel-reinforced core provide protection against moisture, sunlight, and physical stress, ensuring reliable operation in exposed environments. How does it compare to other outdoor fiber cables? Unlike multi-tube designs, the unitube structure offers better space efficiency, easier splicing, and improved fiber management—ideal for centralized distribution systems. Is this cable compatible with existing fiber infrastructure? Yes, the GYXTW cable adheres to ITU-T G.652.D standards, making it fully compatible with industry-leading transceivers, patch panels, and passive optical splitters. Can it be installed in extreme climates? Absolutely. With proven performance across temperature ranges from -40°C to +70°C, it remains stable in arctic regions, deserts, and tropical zones alike.
Product Categories : Outdoor Fiber Optic Cable > Loose Tube Fiber
