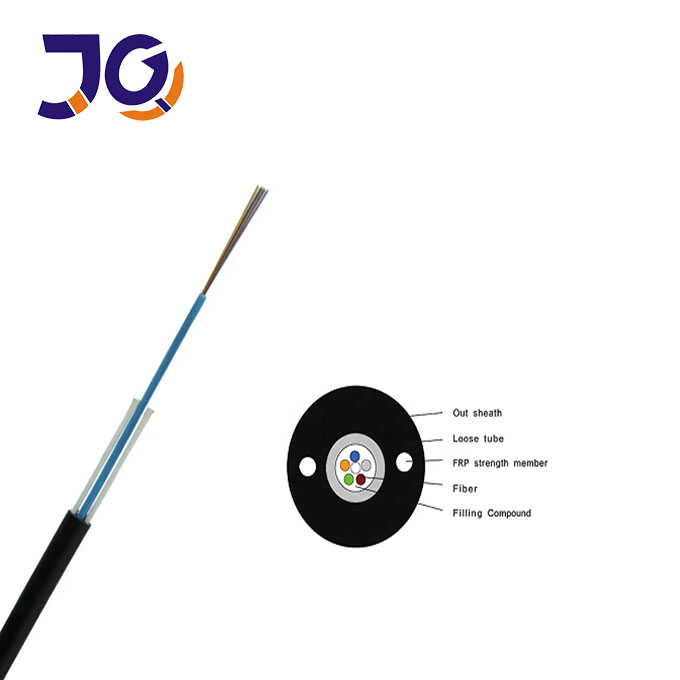

Uni-Tube Fiber Optic Cable GYFXTY: High-Performance Single Mode and Multimode Solution for Global Deployment The Uni-Tube Fiber Optic Cable GYFXTY is a premium-grade optical fiber solution engineered for long-haul, high-capacity communication networks across diverse environmental conditions. Designed with advanced
loose tube technology and water-blocking gel-filled tubes, this cable ensures superior protection against moisture intrusion while maintaining signal integrity over extended distances. With options for single mode G652D or multimode OM2/OM3/OM4 fibers, it supports both legacy and next-generation data transmission needs in metropolitan, regional, and international infrastructure projects. Key Features: This robust cable integrates FRP (fiber-reinforced plastic) strength members alongside a steel tape armor layer, providing exceptional tensile strength—up to 1500N for short-term loads and 600N for continuous operation. Its crush resistance reaches 1000N briefly and 300N continuously, making it ideal for installation in confined ducts or exposed aerial environments. The polyethylene (PE) outer sheath offers UV resistance, chemical stability, and durability under extreme weather conditions—from -40°C to +70°C—ensuring reliable performance in arid deserts, coastal regions, and temperate climates alike. Detailed Description: Each unit of the Uni-Tube GYFXTY contains up to 24 individual optical fibers housed within separate buffer tubes, minimizing microbending losses and enhancing flexibility during installation. The attenuation coefficient remains below 0.35 dB/km at 1310nm and less than 0.22 dB/km at 1550nm, enabling low-loss signal propagation over kilometers without repeaters. The compact diameter of 6–8mm allows easy handling through conduits, reducing labor costs and installation time. Unlike traditional armored cables that are bulky and difficult to manage, this design balances mechanical resilience with lightweight portability—a critical advantage for trenchless deployment methods such as blowing or pulling through existing ducts. Ideal Use Cases: Engineers and telecom providers worldwide rely on this cable for underground conduit systems, direct burial installations, and overhead aerial routes. It’s particularly suited for FTTH (Fiber to the Home), 5G backhaul networks, smart city infrastructure, and enterprise campus connectivity where reliability, scalability, and ease of maintenance are paramount. Whether deployed in urban centers or remote rural areas, the Uni-Tube GYFXTY delivers consistent performance regardless of terrain or climatic challenges. Customer Feedback: Users consistently praise its ease of termination, minimal bending radius, and ability to withstand harsh field conditions without degradation. Many network architects highlight its compatibility with existing fusion splicing equipment and its role in reducing overall project timelines due to simplified logistics and fewer splice points required. Frequently Asked Questions: What makes the Uni-Tube GYFXTY different from standard fiber optic cables? It features a unique combination of water-blocking compounds, FRP reinforcement, and a flexible PE jacket that enhances both mechanical and environmental resilience compared to conventional designs. Is it suitable for outdoor aerial installations? Yes, thanks to its UV-resistant sheath and strong tensile properties, it performs reliably when suspended between poles or mounted on utility structures. Can I install it myself without professional tools? While professional tools are recommended for optimal results, the cable’s manageable size and straightforward structure allow experienced technicians to handle it efficiently using standard fiber handling equipment. How does it perform in freezing temperatures? Its operating range from -40°C to +70°C ensures stable functionality even in sub-zero environments, making it perfect for northern European, Canadian, or Alaskan deployments. What core counts are available? Standard configurations include 6-core, 12-core, and up to 24-core variants, offering scalable solutions tailored to specific bandwidth requirements.
Product Categories : Outdoor Fiber Optic Cable > Loose Tube Fiber
