GYXTW unitube optical fiber cable

Basic Info

Model No.: GYXTW

Brand: Jiqian

Place Of Origin: China

Structure: Loose Tube

Application: Aerial

Fiber: YOFC Fiber Corning Fiber

Strength Member: Steel wires

Steel Wires Diameter: 1.0mm

Jacket: Black HDPE

Additional Info

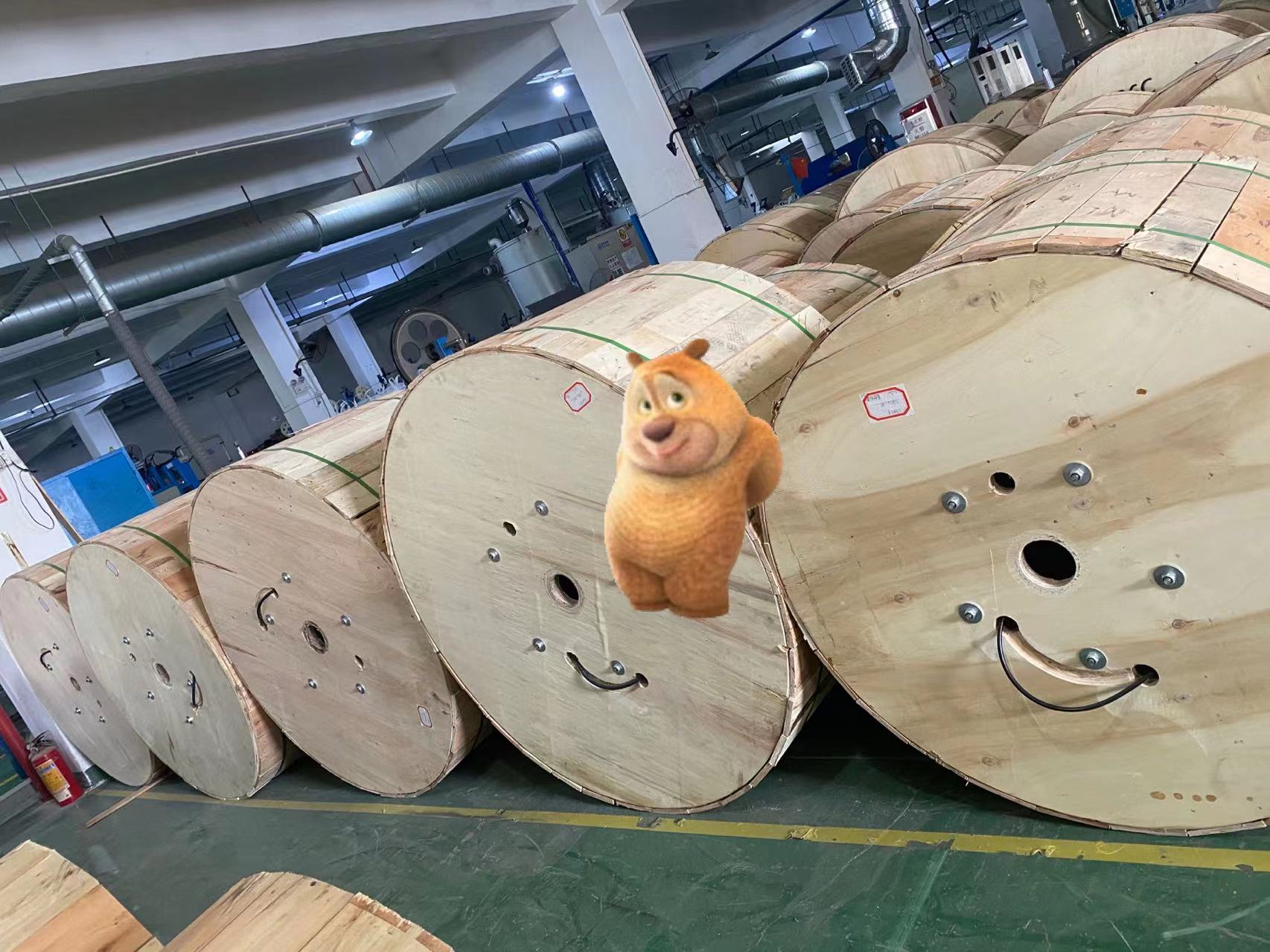

Packaging: Wooden Drum

Productivity: 1800KM/1 month

Transportation: Ocean,Air,Land,Express

Place of Origin: China

Supply Ability: 1800km/ 1month

Certificate: ISO/CE/ROHS/FC

HS Code: 8544700000

Port: Guangzhou,Huangpu,Zhejiang

Product Description

Unitube Fiber Optic Cable

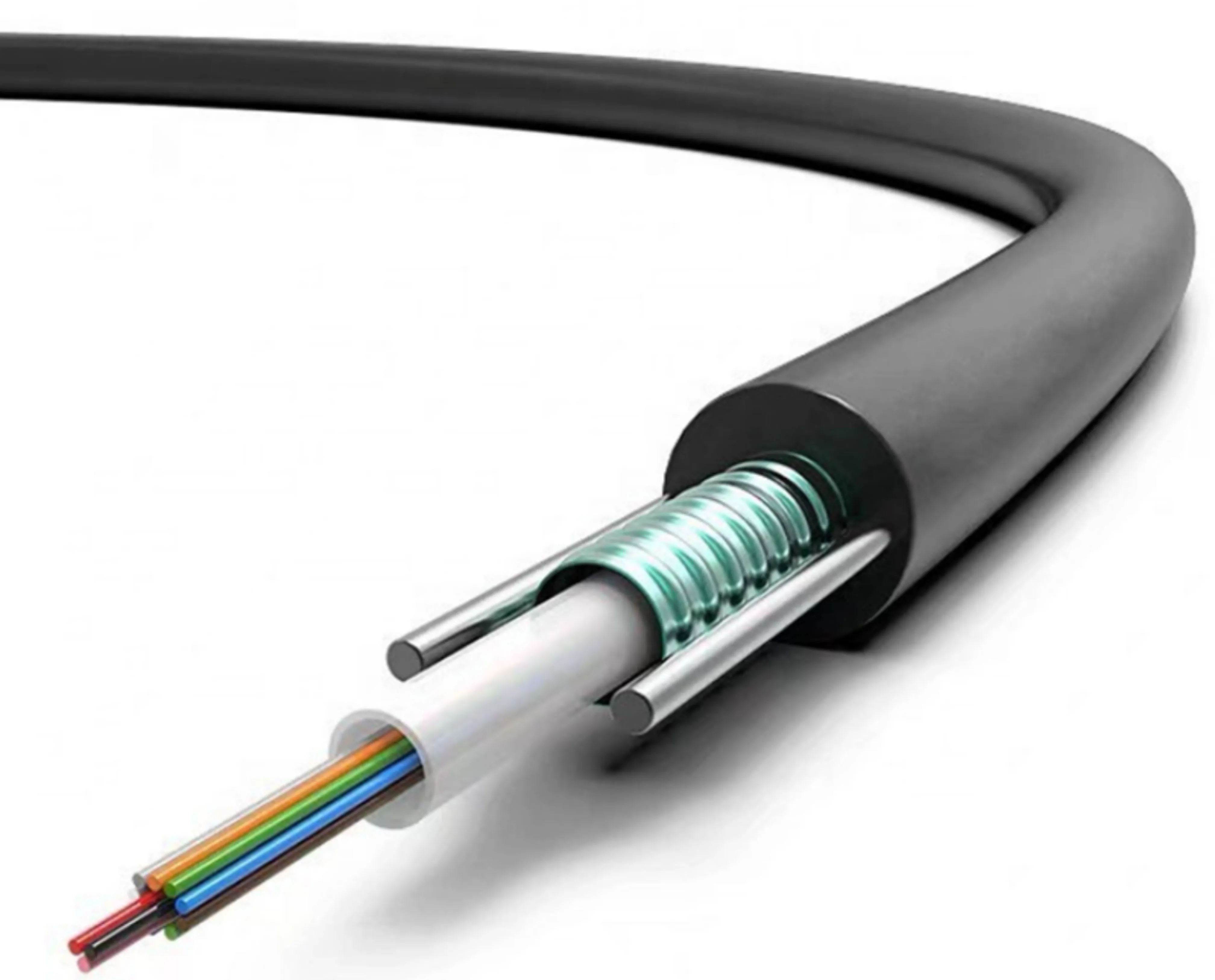

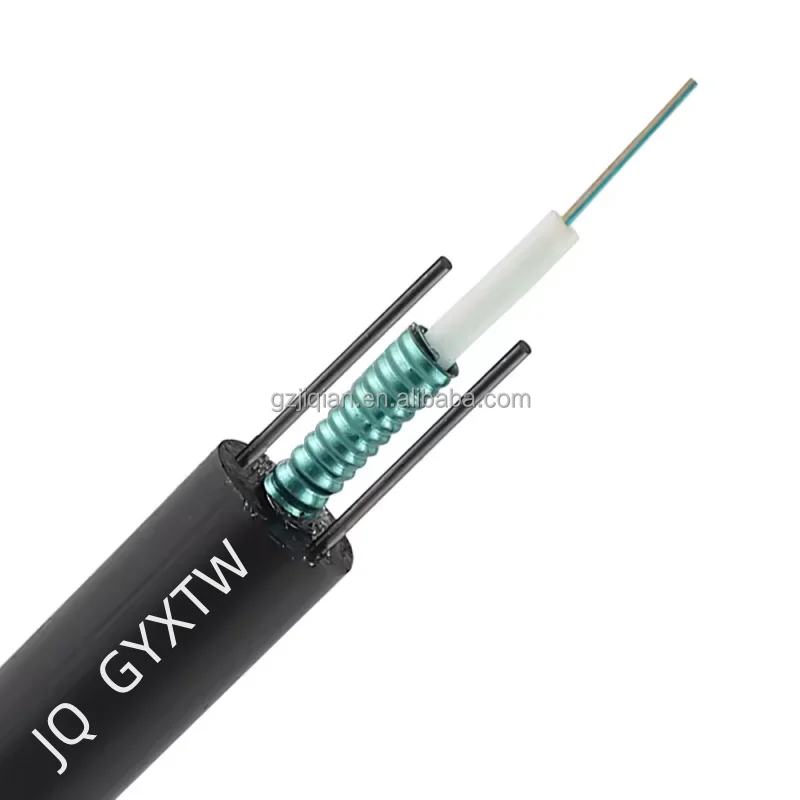

The GYXTW fiber optic cable uses a unit-tube structure with a loose tube containing up to 24 fibers, protected by a gel-filled buffer. Loose Tube Fiber The cable features a corrugated steel tape armor and an embedded steel wire strength member. The operating temperature range is -40°C to +60°C, while the storage and installation temperature range is -40°C to +50°C. With a black polyethylene outer jacket resistant to UV and moisture, 012zuc t4f22d20 this cable is suitable for long-distance data transmission and outdoor overhead cable installation.

We ensure quality by providing pre-production samples before mass production and conducting thorough final inspections before shipment. At our company, you can find a range of fiber optic products, including fiber optic cable, ftth cable, and patch cords, all designed to meet your connectivity needs.

Fiber count	Tube diameter mm	Steel wire diameter	Sheath thickness (nominal*)	Overall diameter (nominal**)	Weight (approx.)
6	2.5	1.0	2.3	8.4	73
12	3.0	1.0	2.3	8.9	81

Operating temperature range	-40℃ to +60℃
Storage / Transport temperature range	-40℃ to +60℃
Installation temperature range	-20℃ to +50℃

We are a company based in Guangdong, China, established in 2004, with a global presence in South America, South Asia, Eastern Asia, the Middle East, Western Europe, Southeast Asia, North America, Oceania, Northern Europe, and Eastern Europe. Our team of 301-500 employees sprang from a vision to deliver exceptional quality products.

Product Categories : Outdoor Fiber Optic Cable > Loose Tube Fiber
