OM3 Fibre Optic Cable 12 Core

Uni-tube GYXTY Fiber Optic Cable – Durable, High-Performance Outdoor Solution for Modern Networks

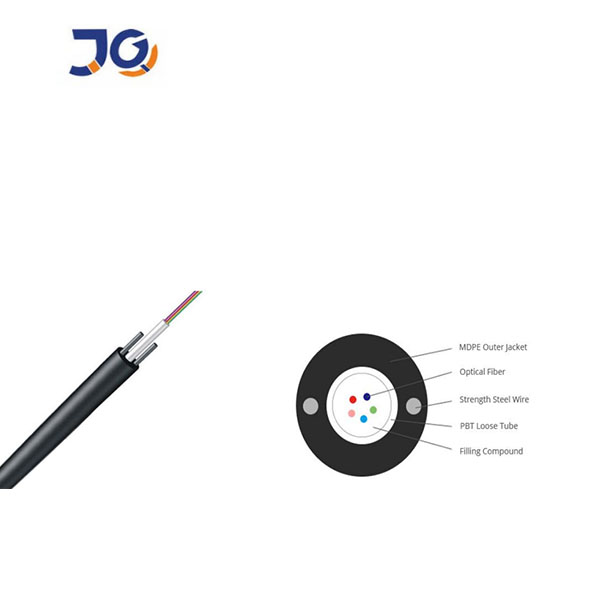

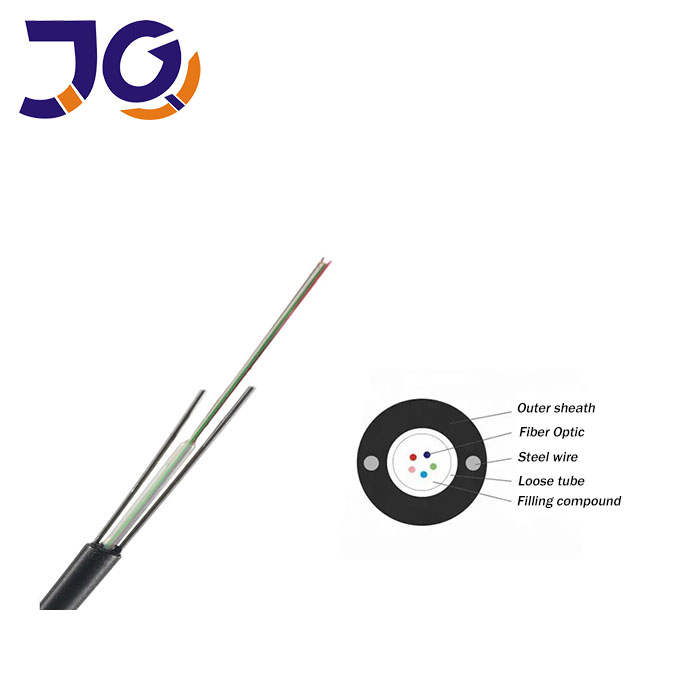

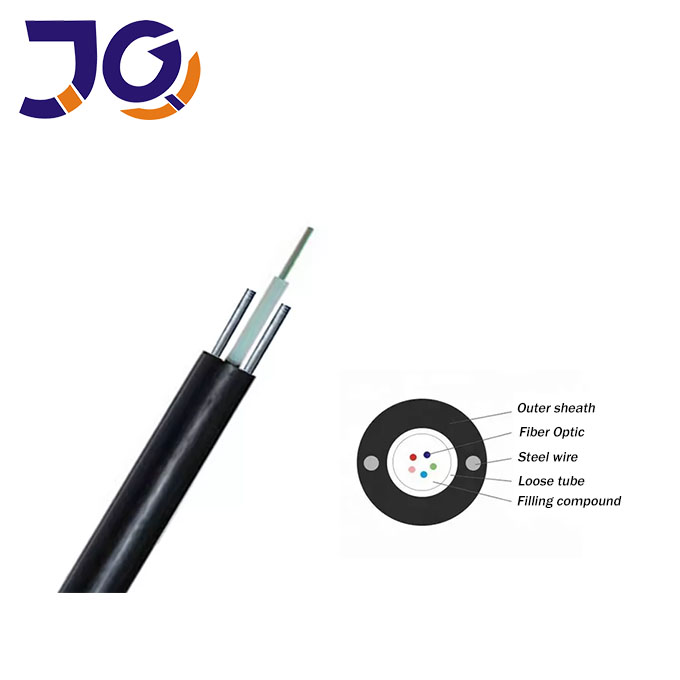

The Uni-tube GYXTY fiber optic cable is engineered for robust outdoor deployment, offering reliable data transmission across diverse environments. Designed with a central loose tube structure filled with water-blocking gel, this non-armored cable ensures long-term protection against moisture ingress—critical for maintaining signal integrity in humid or wet conditions. Its unique construction combines tensile strength, environmental resistance, and ease of installation, making it ideal for telecommunications infrastructure projects worldwide.

Key Features:

• Up to 24 fiber cores (G652D standard) for scalable bandwidth capacity
• Two parallel steel wires or FRP (Fiberglass Reinforced Plastic) strength members for enhanced tensile performance
• UV-resistant polyethylene (PE) outer sheath for durability under sunlight exposure
• Low attenuation levels at both 1310nm and 1550nm wavelengths—≤0.35 dB/km and ≤0.22 dB/km respectively
• Compact diameter range (5.5–8 mm) for easy duct or aerial routing
• High crush resistance (long-term: 300 N/10cm, short-term: 1000 N/10cm)
• Hydrolysis-resistant loose tube design prevents fiber degradation due to moisture

This Unitube Fiber Optic Cable excels in mechanical resilience and thermal stability, allowing consistent operation from -40°C to +70°C. The special grease-filled tube acts as a barrier against humidity, while the dual-strength elements ensure the cable can withstand prolonged stress during installation and service life. Unlike armored alternatives, the GYXTY’s lightweight profile simplifies handling, reduces labor costs, and minimizes damage risks during pulling through conduits or strung along poles.

Common applications include backbone links between telecom exchanges, rural broadband expansion, power utility communication networks, and access network deployments where reliability and cost-efficiency are paramount. Whether used in urban ducts, overhead installations, or buried configurations, the GYXTY delivers stable optical performance without compromising on flexibility or longevity.

Users consistently praise its rugged build, minimal signal loss over distance, and adaptability to challenging climates. Many report that the low-profile design streamlines trenching and conduit work, especially when compared to bulkier cables. Its compatibility with standard termination tools and fusion splicers makes integration into existing systems seamless.

Frequently Asked Questions:

What makes the GYXTY different from other outdoor fiber cables?

Unlike many multi-core designs, the GYXTY uses a single loose tube configuration with advanced sealing technology, which enhances moisture resistance while keeping the overall size compact—ideal for space-constrained installations.

Is this cable suitable for aerial installations?

Yes, thanks to its dual steel wire reinforcement, the GYXTY supports up to 1500N short-term tension, making it well-suited for pole-mounted runs in areas prone to wind or ice loads.

Can I install it underground?

Absolutely—the PE sheath provides excellent chemical and UV resistance, ensuring safe burial in soil or concrete conduits without premature degradation.

How does the attenuation compare to industry standards?

At 1310nm, the cable achieves ≤0.35 dB/km; at 1550nm, it meets ≤0.22 dB/km—both within ITU-T G.652D specifications, guaranteeing efficient long-haul data transfer.

What type of environment is best suited for this cable?

It performs optimally in temperate to extreme climates—from desert heat to sub-zero cold zones—making it perfect for global telecom rollouts, especially in regions with variable weather patterns.

Whether you're upgrading legacy networks or deploying new fiber-to-the-home (FTTH) solutions, the Uni-tube GYXTY represents a smart investment in future-proof connectivity. With its proven track record in real-world deployments and compliance with international telecommunication standards, it remains one of the most trusted choices for engineers and network planners seeking high-quality, durable fiber solutions beyond borders.

Product Categories : Outdoor Fiber Optic Cable > Loose Tube Fiber
