figure 8 self-supporting fiber outdoor cable GYTC8S

GYTC8S Figure 8 Self-Supporting Outdoor Fiber Optic Cable – Reliable, Durable, and Versatile for Modern Telecommunications

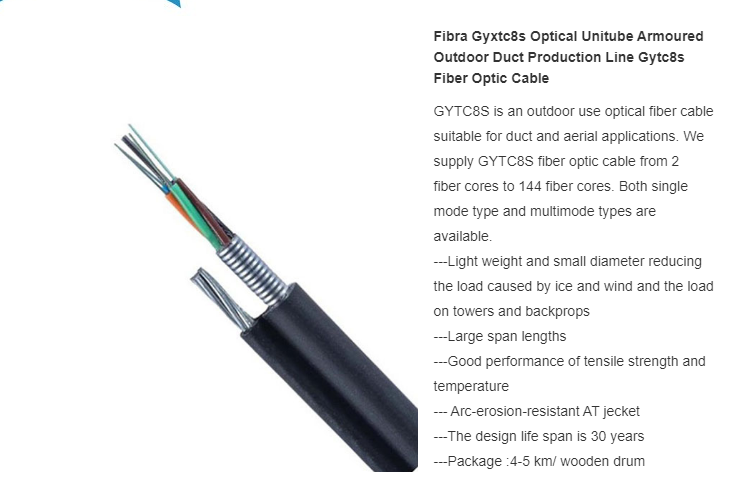

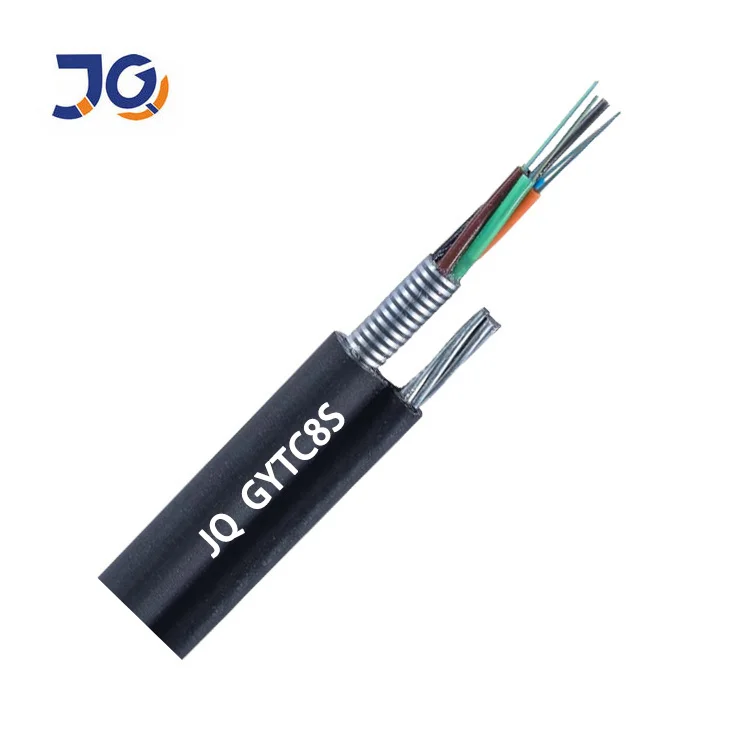

The GYTC8S figure 8 self-supporting fiber optic cable is a premium outdoor solution engineered for robust performance in demanding environments. Designed with a unique dual-section structure resembling the number "8," this cable combines strength and flexibility, making it ideal for aerial installations across diverse geographic conditions. Whether deployed in urban infrastructure, rural connectivity projects, or industrial networks, the GYTC8S ensures consistent signal transmission with minimal maintenance requirements.

Engineered to support between 2 and 144 optical fibers, the GYTC8S offers scalability for both small-scale deployments and large enterprise-grade communication systems. Available in single-mode and multimode configurations, it supports high-bandwidth applications such as FTTH (Fiber to the Home), 5G backhaul, and data center interconnects. Its customizable core count allows telecom providers and network engineers to tailor solutions precisely to their project needs without compromising on quality or future expansion potential.

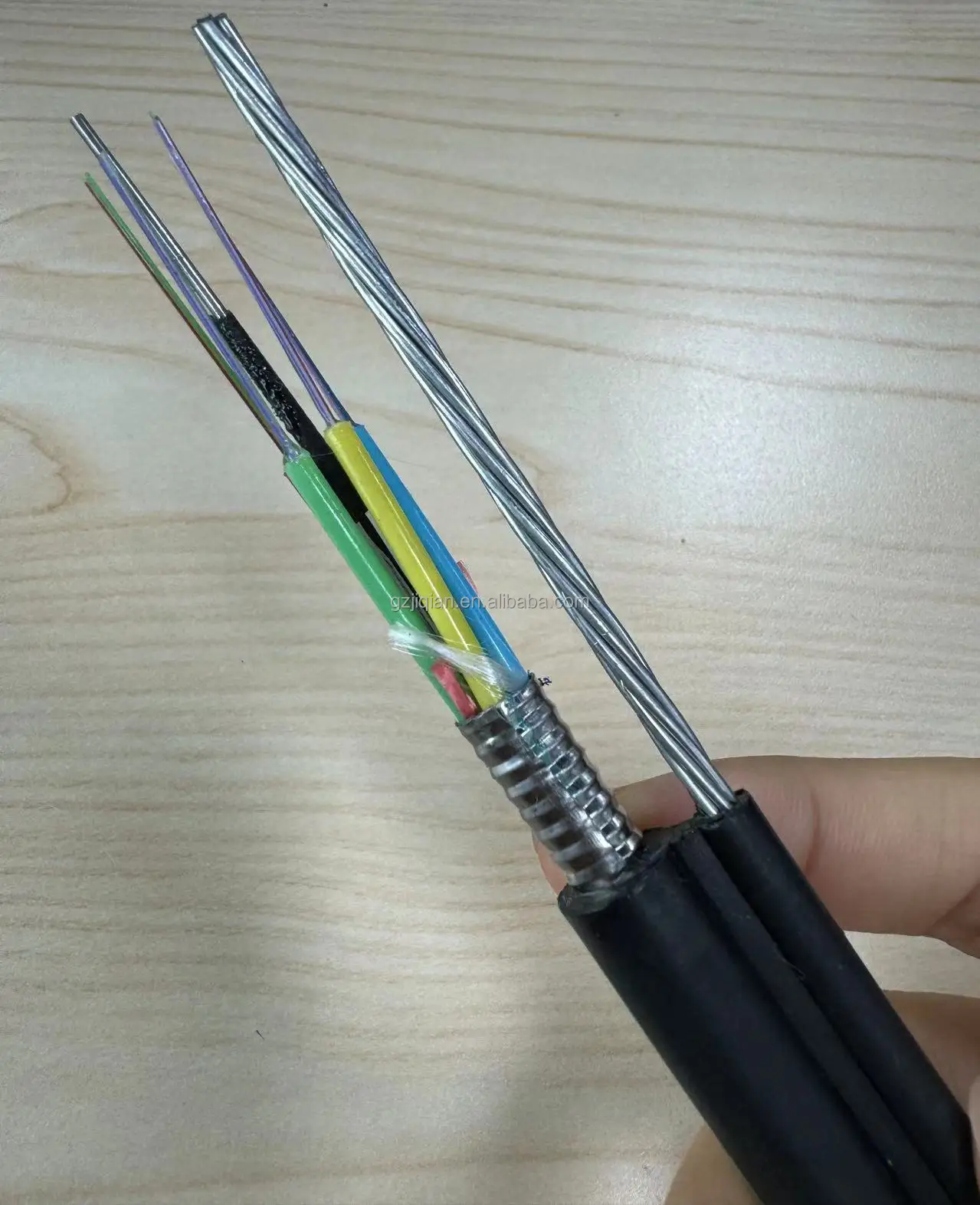

Key features include a central strength member made of steel wire or PE-coated steel for enhanced tensile resistance, an integrated messenger strand composed of galvanized steel wire that eliminates the need for separate supporting cables, and a rugged polyethylene outer sheath rated for UV exposure, moisture ingress, and temperature extremes. The loose tube design—made from PBT (polybutylene terephthalate)—protects individual fiber strands while allowing thermal expansion and contraction, reducing microbending losses over time. Each tube is color-coded (blue, orange, green, brown, slate, white, red, black, yellow, violet, pink, aqua) for easy identification during installation and splicing, improving efficiency for technicians working under tight deadlines.

The cable’s internal structure includes a water-blocking gel filling compound that prevents moisture penetration in wet or humid climates, ensuring long-term reliability even in tropical or coastal regions. A polypropylene (PP) filler provides structural integrity and maintains uniform cable geometry, which is critical for proper handling during pulling and tension management. This combination of materials and engineering principles makes the GYTC8S suitable for direct burial, aerial hanging, or conduit placement, offering versatile deployment options for modern fiber networks.

This outdoor fiber optic cable is widely used in telecommunications infrastructure, including utility poles, street cabinets, and rooftop installations. It serves as a preferred choice for ISPs, government agencies, and private enterprises seeking cost-effective, low-maintenance solutions for last-mile connectivity. Its lightweight yet durable build simplifies logistics and reduces labor costs compared to traditional armored or duct-laid alternatives. Additionally, the self-supporting nature of the figure 8 design minimizes the need for additional hardware like messenger wires or clamps, streamlining the installation process and accelerating time-to-market for new services.

Users consistently praise the GYTC8S for its ease of installation, excellent environmental resilience, and consistent optical performance across varied weather conditions. Engineers appreciate the clear labeling system and modular design, which reduce errors during termination and testing phases. Field reports indicate minimal signal degradation over extended distances, confirming its suitability for long-haul links and dense urban deployments alike.

Common questions often revolve around compatibility with existing fiber networks, expected lifespan under different climatic conditions, and whether it meets international standards such as ITU-T G.652.D or IEC 60794-1. The answer lies in its compliance with global specifications for outdoor fiber cables, including mechanical stress resistance, flame retardancy, and chemical stability. While some users may initially inquire about splice loss or bending radius limitations, the manufacturer's technical documentation confirms optimal performance within standard industry guidelines when installed correctly.

Product Categories : Outdoor Fiber Optic Cable > Figure 8 Fiber Optic Cable
