Fig 8 Fiber Cable DJDA GYTC8S53

GYTC8S53 Outdoor Fiber Optic Cable 12 Core – High-Performance Self-Supporting Solution for Aerial Deployments

The GYTC8S53 outdoor fiber optic cable is a premium-grade, figure-8 structured solution engineered for reliable aerial installations across diverse environments. With its compact circular core design and robust mechanical protection, this 12-core optical fiber cable delivers exceptional durability, making it ideal for long-distance telecommunications, broadband infrastructure, and utility pole deployments in regions where weather resistance and structural integrity are critical.

Key features include Loose Tube Fiber units filled with water-blocking gel to prevent moisture ingress—ensuring stable signal transmission even in humid or flood-prone areas. The central strength member, composed of either FRP (Fiberglass Reinforced Plastic) or galvanized steel wire, enhances tensile strength and supports self-sustaining hanging from overhead structures without additional support hardware. This makes the GYTC8S53 particularly suitable for rural telecom expansion, smart city networks, and last-mile connectivity projects where trenching is impractical or cost-prohibitive.

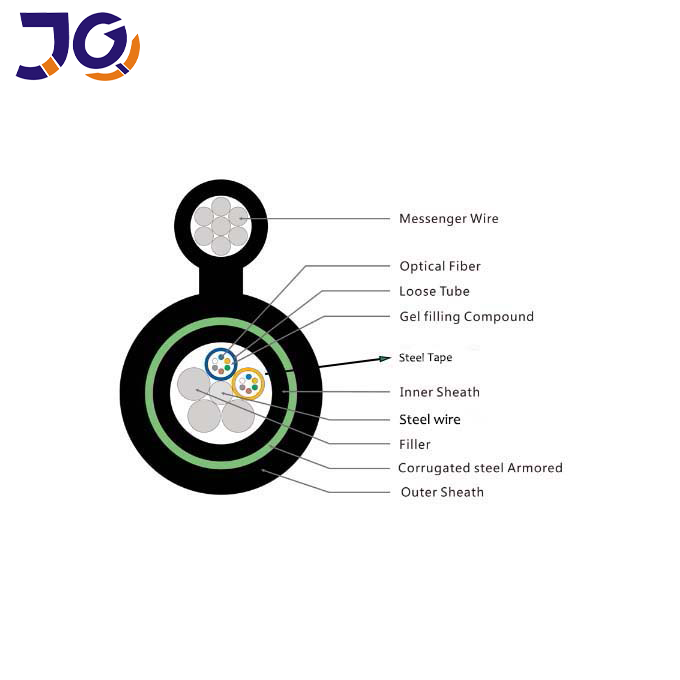

Manufactured using a layered construction approach, the cable integrates a corrugated steel tape armor beneath an inner sheath, followed by a UV-resistant polyethylene outer jacket. This configuration not only protects against abrasion, rodent damage, and environmental stress but also provides excellent flexibility during installation. Available in both single-armored (DJSA) and double-jacketed (DJDA) variants, the GYTC8S53 offers customizable options based on terrain conditions, load requirements, and regulatory standards in different markets.

Designed for professional installers and network engineers, the GYTC8S53 supports up to 12 individual fibers per unit, allowing scalable bandwidth capacity for future-proof deployment strategies. Its figure-8 shape ensures balanced tension distribution when suspended between poles, minimizing sag and reducing maintenance needs over time. Additionally, the inclusion of 3.0mm galvanized steel wires—available in two diameters (7x1.0mm or 7x1.2mm)—provides optimal weight-to-strength ratio for efficient handling and secure mounting.

This outdoor fiber cable is widely used in telecommunications backbone networks, FTTH (Fiber to the Home) rollouts, industrial automation systems, and government communication projects worldwide. Whether deployed in arid deserts, coastal zones, or mountainous terrains, the GYTC8S53 maintains consistent performance due to its advanced materials and precision engineering.

Users appreciate its ease of installation, minimal signal loss over distance, and compatibility with standard fusion splicing equipment. Many professionals highlight its reliability in harsh climates—especially in regions with extreme temperature fluctuations or high humidity levels—as a key advantage over conventional duct-laid cables.

Frequently asked questions often revolve around maximum pulling tension, bend radius specifications, and suitability for direct burial versus aerial use. While primarily designed for overhead applications, some variants can be adapted for shallow burial if properly protected. Installation guidelines recommend maintaining a minimum bending radius of 15 times the cable diameter to avoid microbending losses. For extended service life, proper strain relief at termination points and periodic inspection of support hardware are strongly advised.

As part of our OEM services, we offer tailored configurations including custom lengths (e.g., 2km drums), specialized jackets, and labeling solutions to meet regional compliance standards. These capabilities make the GYTC8S53 a versatile choice for global contractors seeking high-quality, standardized fiber solutions that balance performance, longevity, and logistical efficiency.

Product Categories : Outdoor Fiber Optic Cable > Figure 8 Fiber Optic Cable
