GYFTC8S Fig 8 Armored OFC 24C G652D Cable

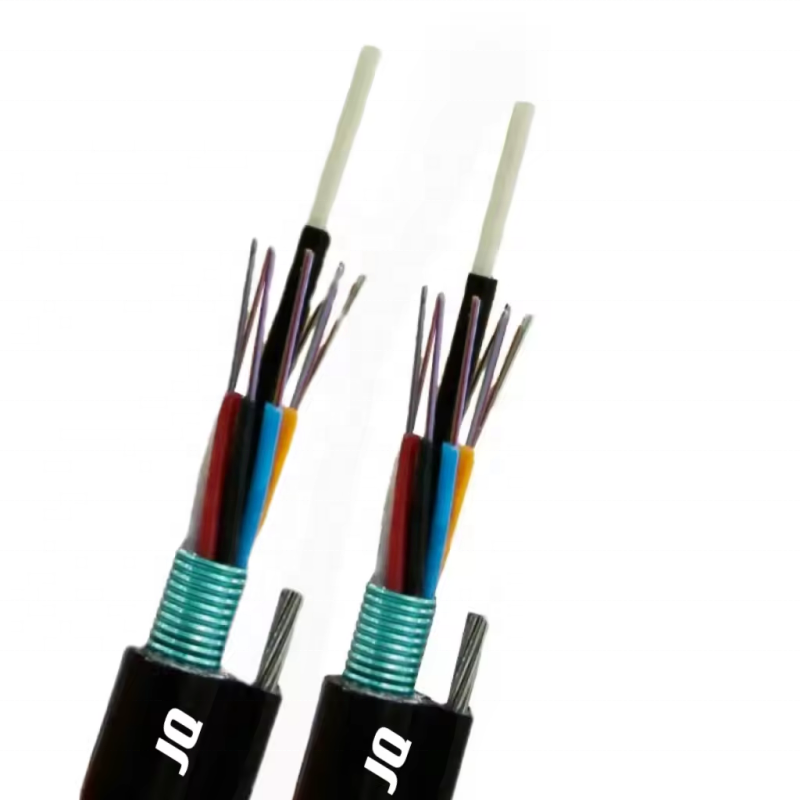

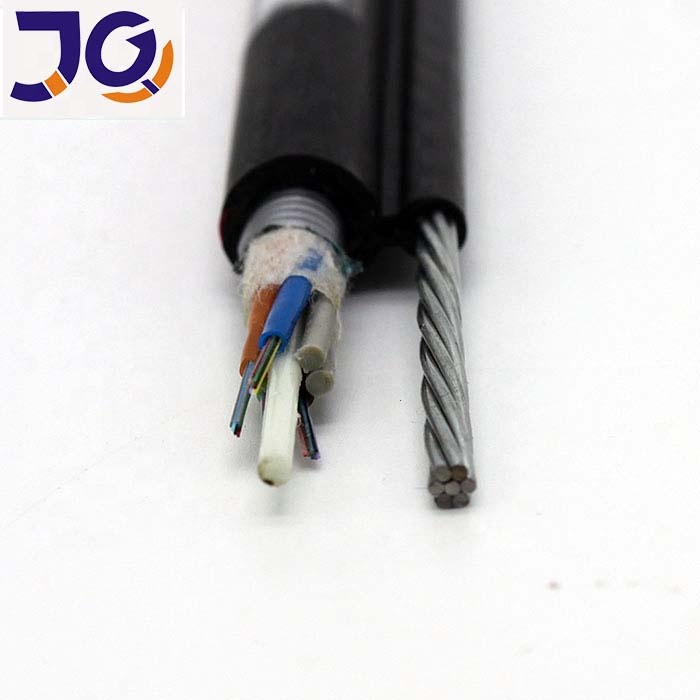

GYFTC8S Figure 8 Armored OFC 24-Core G652D Fiber Optic Cable – Durable, High-Performance Solution for Aerial Deployment

This premium-grade fiber optic cable is engineered for robust performance in outdoor environments where reliability and longevity are paramount. The GYFTC8S Figure 8 Armored OFC 24C G652D cable combines advanced materials with a structurally optimized design to deliver exceptional signal integrity over long distances. With its unique figure-eight configuration, this self-supporting aerial fiber solution ensures minimal sag and maximum tensile strength—ideal for overhead installations across diverse terrains.

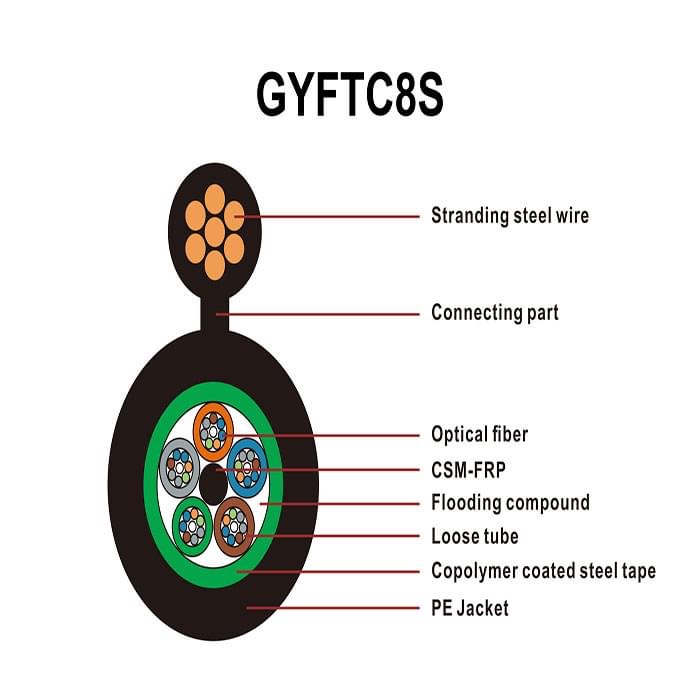

Key features include a central strength member made of high-tensile steel wire, surrounded by loose tube fibers filled with water-blocking gel. Each fiber is encased in a high-modulus plastic buffer tube, providing mechanical protection while maintaining low attenuation levels. The outer polyethylene (PE) sheath adds resistance against UV radiation, moisture ingress, and environmental stressors such as temperature extremes and abrasion. This construction makes it suitable for both direct burial and aerial applications, particularly in regions requiring long-haul communication infrastructure.

Manufactured to meet international standards like ITU-T G.652, IEC 60794-1, and YD/T 1155-2001, the GYFTC8S offers precise optical parameters. At 1310 nm, the mode field diameter measures 9.2 ± 0.4 µm, while at 1550 nm it reaches 10.4 ± 0.5 µm—ensuring compatibility with modern telecom systems. Cladding diameter remains tightly controlled at 124.8 ± 0.7 µm, with concentricity errors under 0.5 µm, guaranteeing consistent light transmission. Attenuation stays below 0.36 dB/km at 1310 nm and 0.22 dB/km at 1550 nm, making it ideal for high-bandwidth data transfer in metropolitan and intercity networks.

The cable’s armor layer enhances crush resistance and protects against rodent damage or accidental impact during installation. Its figure-eight profile allows for efficient deployment on poles without additional support hardware, reducing labor costs and installation time. Designed specifically for long-distance optical fiber runs exceeding 4 kilometers, this cable supports continuous pulling operations when used with automated fiber pullers—a critical requirement for large-scale OSP (Outside Plant) projects.

Common use cases include backbone links between cities, campus connectivity, utility company backhaul networks, and rural broadband expansion initiatives. Whether deployed along highways, railways, or remote mountainous areas, the GYFTC8S ensures stable, future-proof communication capabilities with minimal maintenance needs. Its compliance with global fiber specifications positions it as a trusted choice for engineers and network planners worldwide.

Users consistently praise its durability under harsh weather conditions and ease of handling during installation. Many report fewer splice losses compared to non-armored alternatives, thanks to the consistent fiber alignment within the loose tubes. Installation teams appreciate the reduced need for intermediate supports due to the inherent structural rigidity of the figure-eight shape, which also minimizes microbending effects that can degrade signal quality over time.

For those seeking a reliable, low-loss, and weather-resistant fiber solution for aerial deployments, the GYFTC8S stands out as an industry-leading option. It delivers superior performance across multiple wavelengths, meets rigorous international benchmarks, and is built to withstand years of operational demands in demanding environments—from coastal zones to arid deserts and cold climates alike.

Frequently asked questions often revolve around suitability for underground use, but the primary design intent remains aerial. While some users have successfully buried it with proper conduit, its optimal performance shines in overhead configurations. Another common query involves compatibility with existing fiber splicing tools—yes, standard fusion splicers work seamlessly with these cables, ensuring smooth integration into legacy and new-build networks.

Product Categories : Outdoor Fiber Optic Cable > Figure 8 Fiber Optic Cable
