self supporting singlemode GYTC8S fiber optic cable

Basic Info

Model No.: GYTC8S fig8 fiber optic cable

Brand: JQ or OEM

Sample: avaliable

Application: outdoor overhead

Drum Length: 1~5km

Loose Tube: multi loose tube

Central Strength Member: steel wire

Fiber Type: singlemode multimode OM1 OM2 OM3

Armor: steel tape

Cable Diameter: 9.5mm*16.5mm

Passenger Steel Wire: 7*1.0mm ²

OEM: accepatble

Additional Info

Packaging: 1~5km per drum

Productivity: 6000km per month

Transportation: Ocean,Land,Air,Express

Place of Origin: Guangdong China

Supply Ability: 6000KM per month

Certificate: FOB /CFR /CIF /EXW

HS Code: 8544700000

Port: Guangzhou port,Shenzhen port

Product Description

self-supporting singlemode GYTC8S fiber optic cable

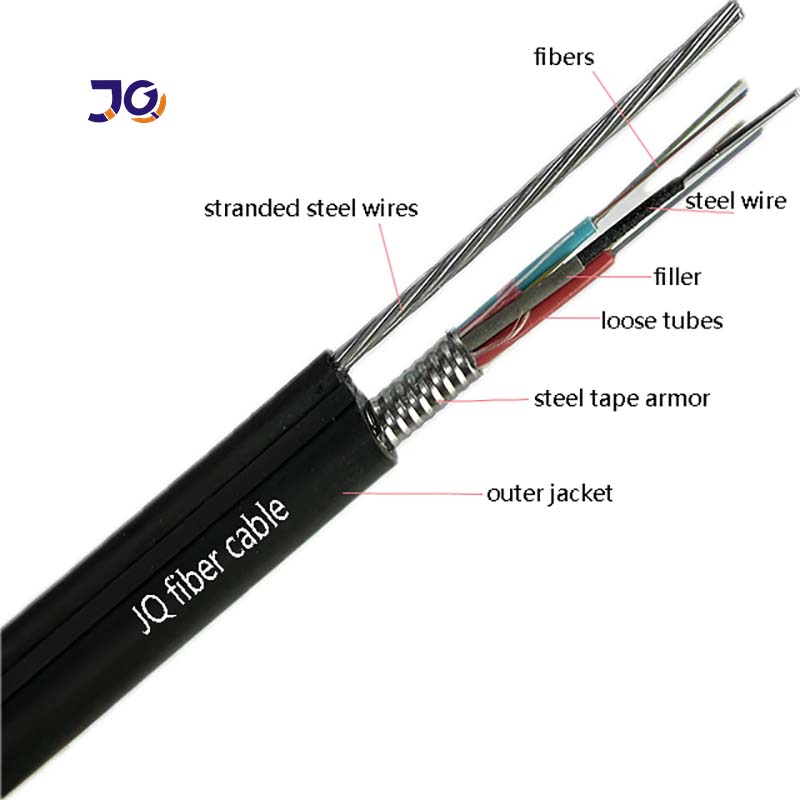

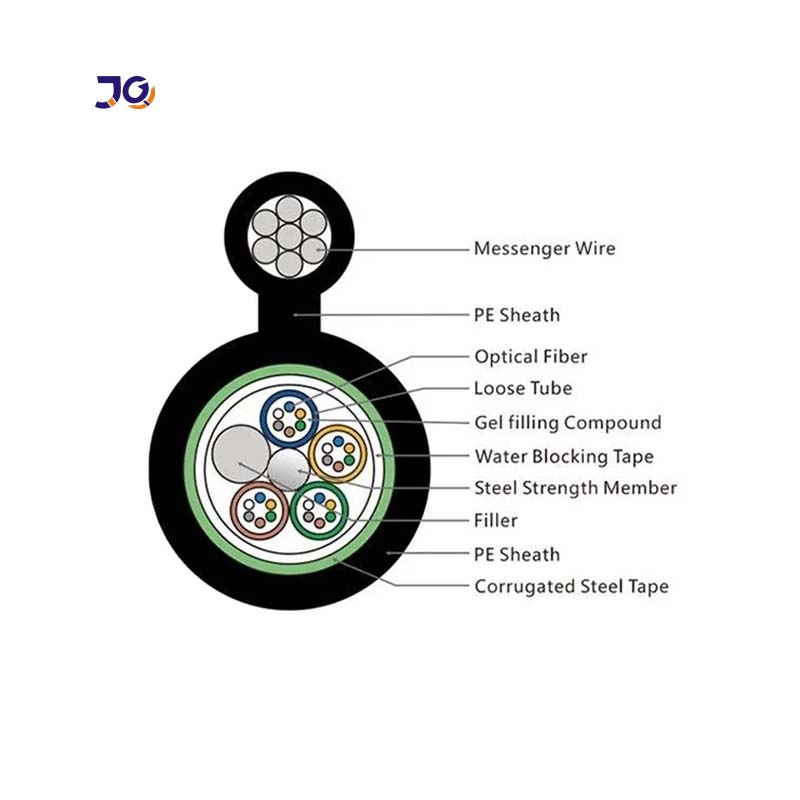

Aerial Cable GYTC8S Fiber Optic Cable is a self-supporting Figure-8 design, engineered for outdoor aerial applications. Optical fibers are inserted into high-modulus tubes filled with waterproof compounds. A metal strength member surrounds the core, twisted with filler ropes for a compact and circular shape. Plastic-coated steel tape and steel wire strands complete the cable, finished with a polyethylene jacket.

item	GYTC8S 48 cores self-supporting fiber optic cable
No. of fibers:	48
fiber standard	G.652D
Structure	Multi Tube, 4 loose tubes, each tube contains 12 fibers
Wire Diameter	3mm² (7x1mm ²)
cable diameter	9.5mm*16.5mm
Attenuation Coefficient 1310nm dB/km	≤0.35
Attenuation Coefficient 1550nm dB/km	≤0.22
Tension (long term)	600N
Tension (short term)	1500N
Crush (long term)	1000N
Crush (short term)	3000N

Figure 8 Fiber Optic Cable Suitable for long-distance communication, the GYTC8S excels in aerial installations with available self-support structures. Its versatility and reliability make it a popular choice for aerial applications.

GYTC8S fiber optic cable is a self-supporting singlemode cable, designed for outdoor aerial applications. Its compact structure features a metal strength member, surrounding loose tubes filled with waterproof compounds. Ideal for long-distance communication, it excels in aerial installations with available support structures.

Product Categories : Outdoor Fiber Optic Cable > Figure 8 Fiber Optic Cable

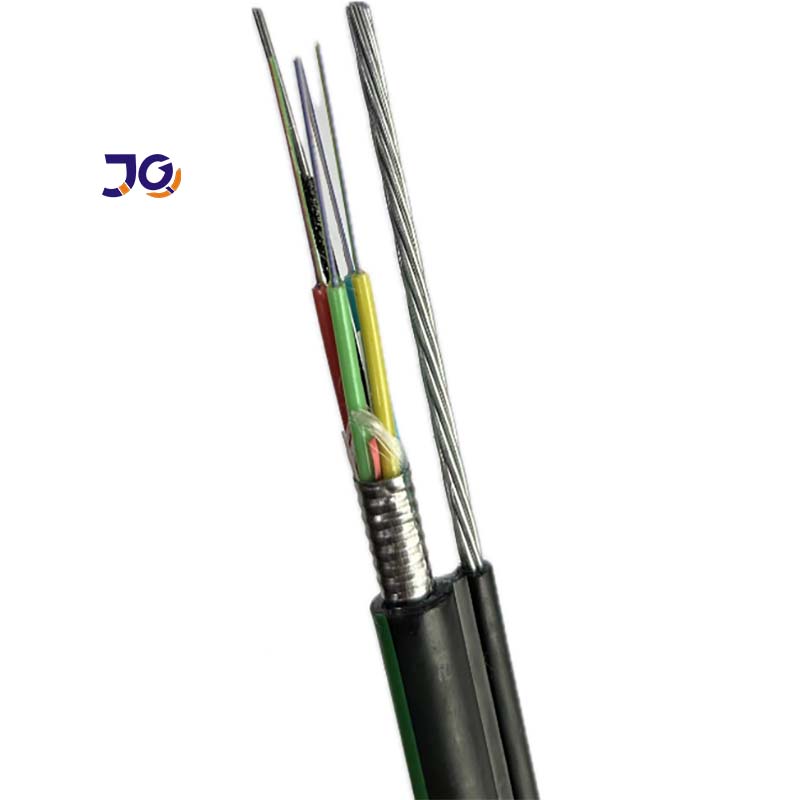

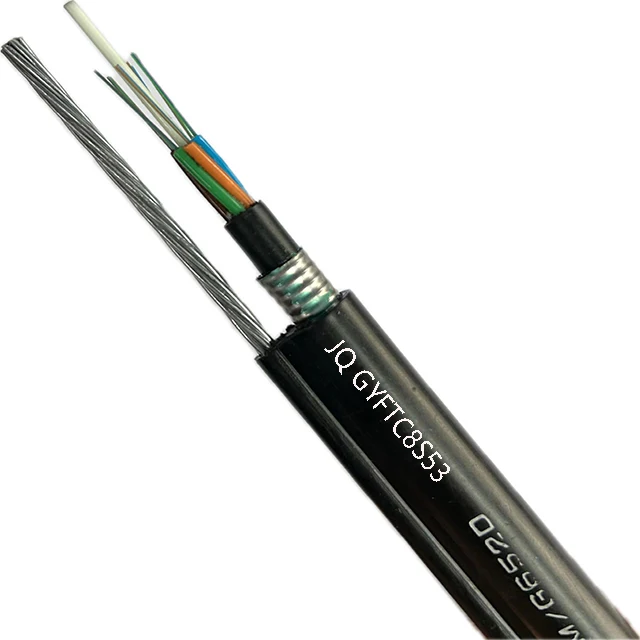

Product Images
