36 cores singlemode GYTS fiber optic for overhead

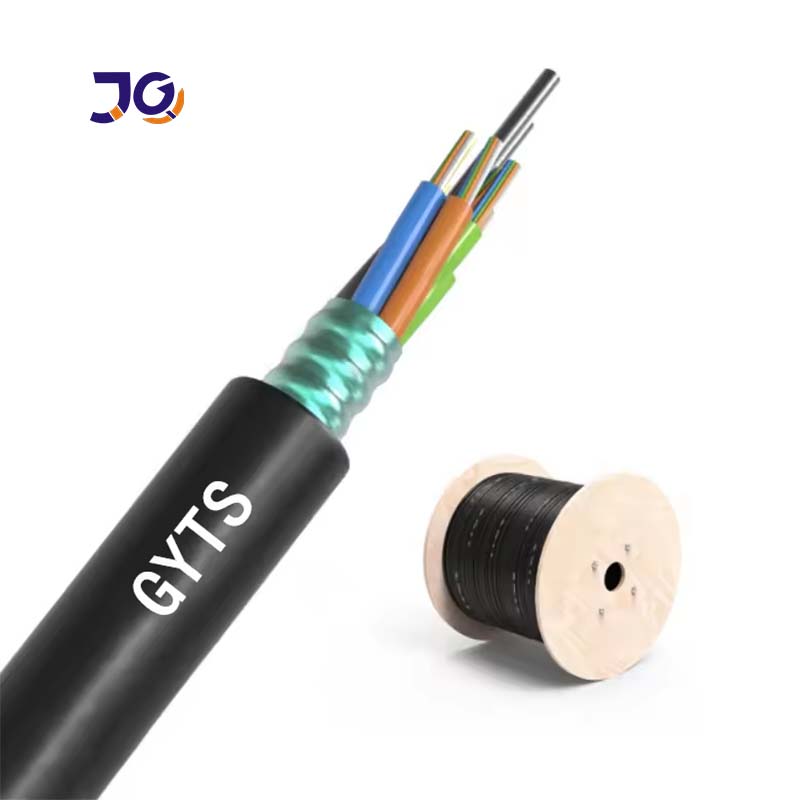

GYTS-36F Single-Mode Fiber Optic Cable – High-Performance Solution for Reliable Long-Distance Communication

The GYTS-36F fiber optic cable is a premium-grade, all-dielectric, loose tube single-mode solution engineered for superior signal integrity over extended distances. Designed with precision and durability in mind, this cable delivers unmatched performance in both outdoor and challenging environmental conditions. Whether deployed in aerial installations, ducts, or direct burial applications, the GYTS-36F ensures stable data transmission while resisting mechanical stress, moisture ingress, and temperature fluctuations.

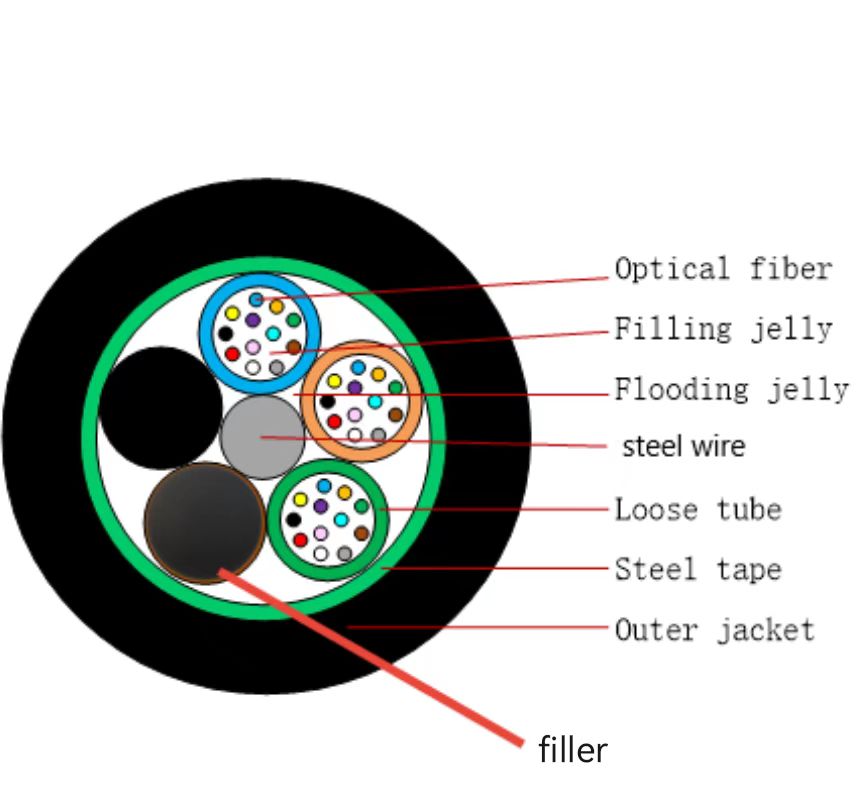

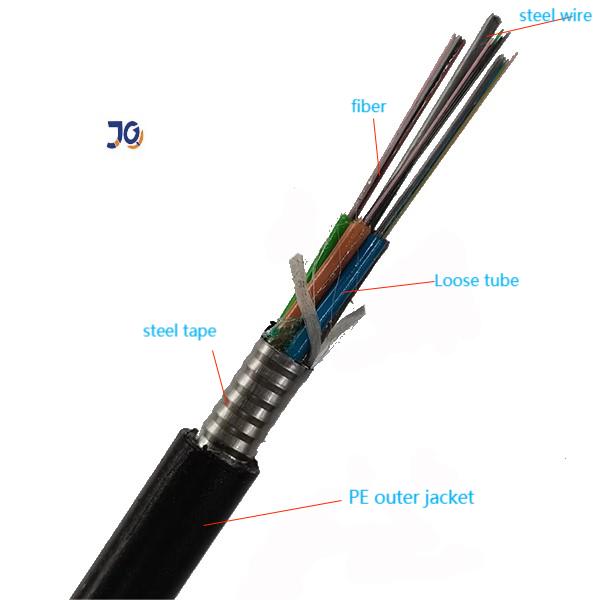

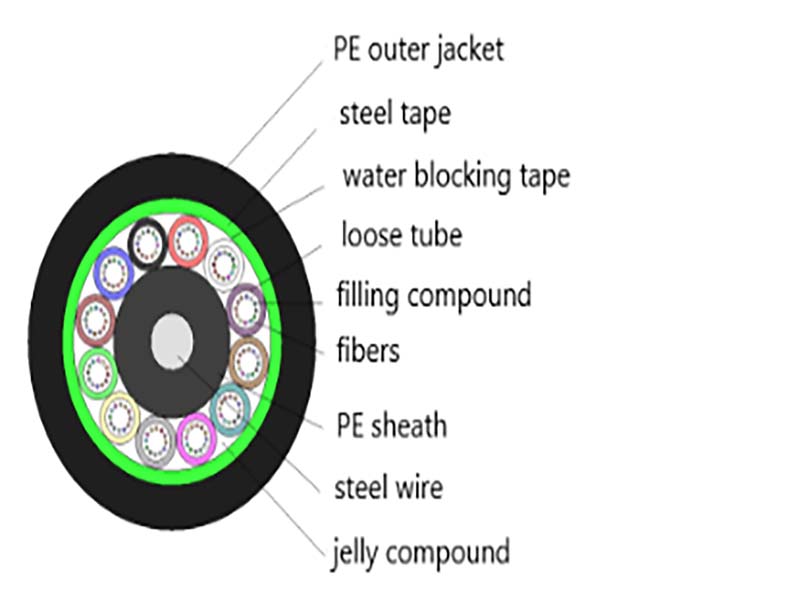

At its core, the cable features 36 individual optical fibers arranged in three independent buffer tubes, each containing 12 fibers. These are housed within a high-modulus polymer jacket that provides ample space for fiber movement—reducing microbending losses and enhancing longevity. A central steel strength member reinforces the structure, enabling excellent tensile resistance (long-term: 600N, short-term: 1500N) and structural stability during installation and service life. The entire assembly is encased in a UV-resistant polyethylene (PE) outer sheath, which offers exceptional protection against sunlight degradation, abrasion, and chemical exposure.

Key technical advantages include ultra-low attenuation levels—less than 0.35 dB/km at 1310 nm and as low as 0.22 dB/km at 1550 nm—ensuring minimal signal loss even across kilometers of deployment. Water-blocking gel fills the interstitial spaces between components, preventing moisture penetration that could otherwise compromise performance in humid or wet environments. Additionally, the design supports repeated bending down to a 90-degree radius without damage, making it ideal for tight-radius routing in confined conduits or complex urban infrastructure.

This robust fiber-optic cable excels in diverse settings such as telecommunications backbone networks, metropolitan area networks (MANs), enterprise data centers, and utility infrastructure projects. Its ability to maintain consistent optical properties under extreme temperatures—from -40°C to +60°C—makes it particularly suitable for harsh climates including arctic regions, deserts, and tropical zones. Installation methods include aerial stranding, conduit pulling, and direct burial, offering flexibility for engineers and contractors alike.

Users consistently praise the GYTS-36F for its reliability, ease of termination, and long-term cost-effectiveness compared to alternative solutions. Many report improved network uptime and reduced maintenance needs due to its rugged construction and resistance to environmental wear. Engineers appreciate the standardized configuration, which simplifies splicing, testing, and documentation processes during large-scale rollouts.

Common questions often revolve around compatibility with existing fiber management systems, expected lifespan under continuous operation, and suitability for underground versus overhead deployment. The answer lies in the cable’s modular design and proven field performance—it integrates seamlessly into modern fiber distribution architectures and typically lasts over 25 years with minimal degradation. It also meets international standards for fire safety, mechanical endurance, and electromagnetic immunity, making it a trusted choice for telecom providers, government agencies, and industrial clients worldwide.

For professionals seeking a dependable, future-proof fiber solution that balances performance, resilience, and value, the GYTS-36F stands out as an industry-leading option tailored for global deployment beyond China and its territories.

Product Categories : Outdoor Fiber Optic Cable > Stranded Loose Tube Cable
