96 cores singlemode aerial GYTS fiber optic cable

GYTS-96F Outdoor Overhead Fiber Optic Cable – High-Density, Durable, and Reliable for Modern Telecommunications

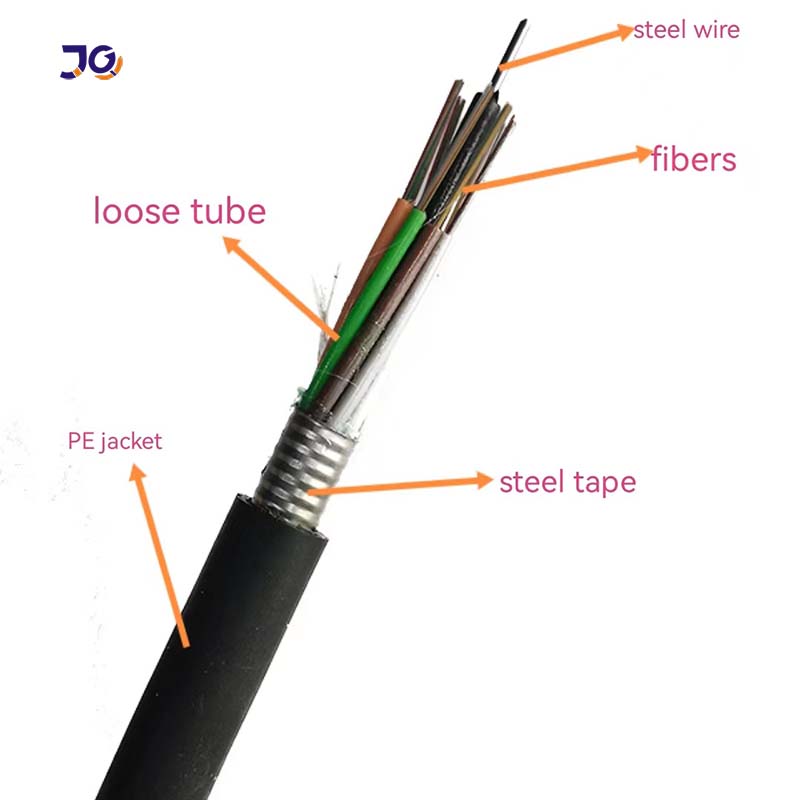

The GYTS-96F fiber optic cable is a premium-grade, outdoor-rated solution engineered for high-capacity data transmission across diverse environments. Featuring 96 individual optical fibers arranged in eight loose tubes—each housing 12 fibers—the design ensures exceptional signal integrity over long distances. This robust cable integrates advanced loose tube technology with corrugated steel tape armor and a polyethylene (PE) outer jacket, making it ideal for aerial deployment, underground ducts, or direct burial installations. Engineered for global use, the GYTS-96F delivers performance that meets international standards while offering superior resistance to moisture, mechanical stress, and temperature extremes.

Key features include a central steel strength member for enhanced tensile resilience, water-blocking gel-filled tubes to prevent ingress in wet conditions, and a structured stranding process that minimizes fiber strain during installation. With an attenuation coefficient of ≤0.35 dB/km at 1310nm and ≤0.22 dB/km at 1550nm, this cable supports high-speed internet, enterprise LANs, and telecom backbones with minimal signal loss. Its compact diameter of 12.6 mm ± 0.5 mm allows efficient routing through existing conduits without compromising protection.

Designed for longevity and environmental adaptability, the GYTS-96F operates reliably from -40°C to +60°C. The combination of corrugated armor and PE sheathing offers crush resistance up to 1000N short-term and 300N long-term, while maintaining flexibility under tension—600N continuous and 1500N peak load capacity. These properties make it a preferred choice for utility companies, ISPs, and infrastructure developers seeking durable fiber solutions for urban, rural, or harsh climate deployments.

This versatile cable is commonly used in FTTH (Fiber to the Home), metropolitan area networks (MANs), backbone links, and industrial communication systems. Whether installed overhead on poles or buried in trenches, its rugged construction ensures stable performance over decades of service life. For professionals requiring low-loss, high-fiber-count cables with proven reliability, the GYTS-96F stands out as a future-proof investment in fiber-optic infrastructure.

Users consistently praise the cable’s ease of handling, consistent signal quality, and ability to withstand challenging field conditions. Many note improved network uptime compared to older cable types, especially in regions prone to extreme weather or frequent ground movement. Installation teams appreciate the clear color-coded tubes and organized layout, which streamline splicing and termination processes.

Common questions often revolve around compatibility with existing hardware, suitability for underground versus aerial use, and maintenance requirements. While not intended for indoor-only applications due to its armored structure, the GYTS-96F excels in outdoor settings where durability and scalability are critical. It does not require special tools for installation but benefits from proper pulling techniques and adherence to bend radius guidelines to preserve fiber integrity. Unlike some alternatives, it maintains performance even when exposed to moisture, rodents, or physical impact—making it a cost-effective long-term option for modern connectivity needs.

Product Categories : Outdoor Fiber Optic Cable > Stranded Loose Tube Cable
