ADSS Fiber Optic Cable – Self-Supporting Aerial Solution for Modern Telecommunications Infrastructure Overview: The ADSS fiber optic cable is a high-performance, dielectric self-supporting

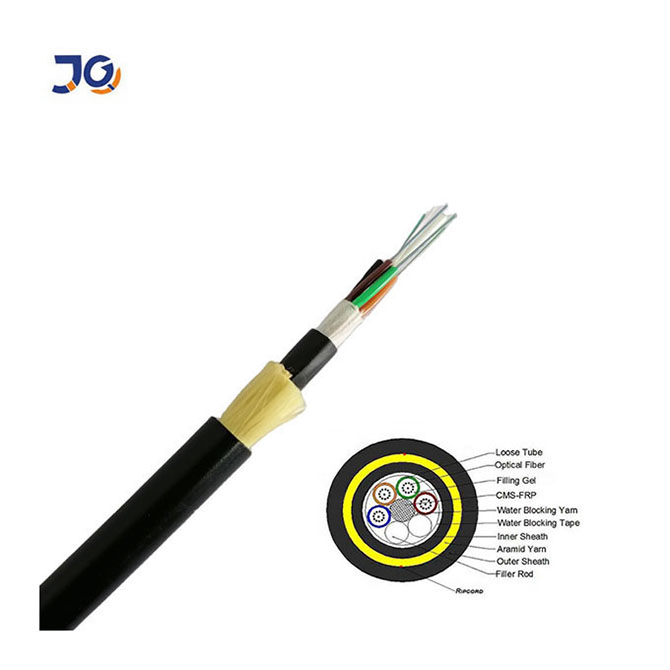

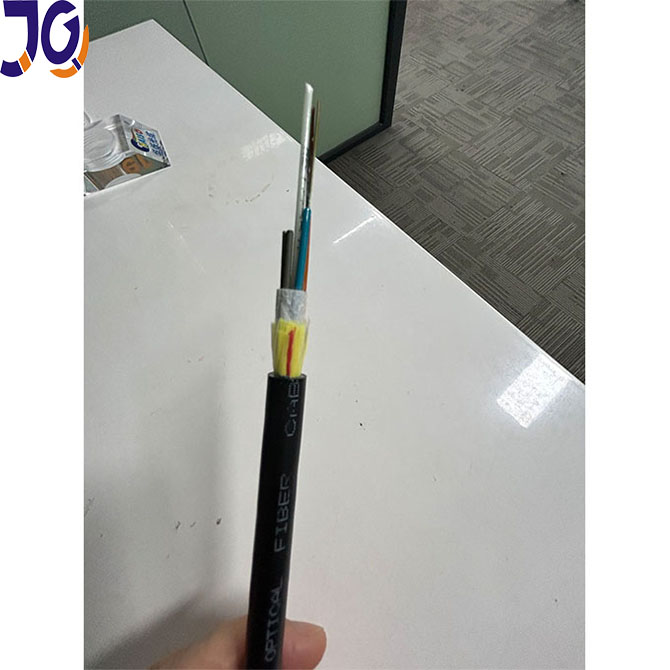

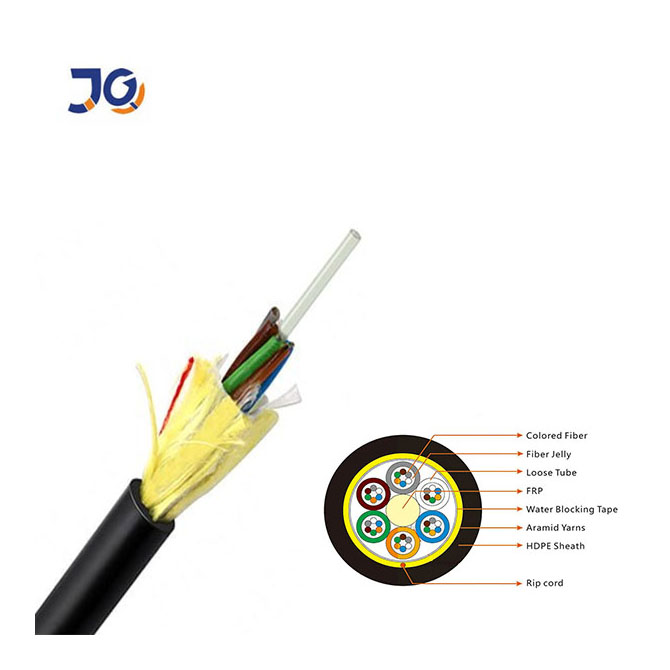

Aerial Cable engineered for reliable long-distance communication across overhead utility poles. Designed with flexibility and durability in mind, this cable supports 24, 32, 48, or 96 fiber cores per unit, making it ideal for both small-scale deployments and large enterprise networks. Each 100-meter span delivers exceptional tensile strength while minimizing mechanical stress on supporting structures—making it an efficient alternative to traditional double-jacketed designs. With a compact single-sheath construction, weight reduction is significant, allowing for easier installation and lower pole loading. Key Features: - Gel-filled loose tubes with reverse oscillation design for mid-span access without compromising integrity - Lightweight and compact single-layer sheath reduces overall diameter and improves wind resistance - High tensile strength for safe installation over spans up to 100 meters - UV-resistant outer jacket ensures longevity under extreme weather conditions - Supports both single-mode and multi-mode fiber configurations for versatile deployment options - Compatible with standard pole-mounted hardware and tensioning systems Detailed Description: Engineered specifically for aerial applications, the ADSS (All-Dielectric Self-Supporting) fiber optic cable eliminates the need for metallic support wires by using non-conductive materials that provide structural integrity while maintaining electrical isolation. The gel-filled tube technology protects individual fibers from moisture ingress and mechanical damage during installation and service life. Unlike conventional cables that require separate messenger wires, ADSS cables are fully self-supporting—streamlining logistics, reducing labor costs, and accelerating project timelines. Available in core counts ranging from 24 to 96 fibers, these cables meet the growing demand for scalable bandwidth solutions in urban, suburban, and rural environments. Custom reel lengths between 2–5 kilometers ensure seamless integration into existing network architectures, with delivery lead times of just 5–7 days based on order volume. Packaging options include robust plywood drums for secure storage and transport. Use Cases: This fiber solution excels in fiber-to-the-home (FTTH), fiber-to-the-building (FTTB), fiber-to-the-node (FTTN), and enterprise outside plant (OSP) installations where overhead routing is preferred or required. It’s widely adopted by telecom providers, utility companies, and government agencies deploying resilient last-mile connectivity across diverse terrains—from coastal regions prone to salt corrosion to mountainous areas with high wind exposure. Its compatibility with existing infrastructure makes it a cost-effective upgrade path for legacy copper-based networks seeking digital transformation. Customer Feedback: Users consistently highlight its ease of handling, reduced installation complexity, and superior performance in harsh outdoor environments. One engineer noted, “We installed 3 km of 48-core
adss cable across a hilly region, and the lightweight design made pulling through tight spaces much simpler than our previous steel-reinforced alternatives.” Another customer praised the reliability: “After two years in service, we’ve experienced zero signal degradation despite heavy snowfall and temperature fluctuations.” Frequently Asked Questions: What does ADSS stand for? ADSS stands for All-Dielectric Self-Supporting—a type of aerial fiber optic cable that uses non-metallic materials to carry fiber strands directly on utility poles without requiring additional steel messenger wires. Can I splice this cable mid-span? Yes, thanks to the reverse oscillation design in the gel-filled tubes, mid-span access is possible without affecting adjacent fibers or introducing air gaps that could cause signal loss. Is it suitable for high-voltage power line corridors? Absolutely—it's electrically non-conductive, making it safe to install near energized lines without risk of induced current or interference. How long is the typical lead time for custom orders? Most orders ship within 5–7 business days depending on quantity, with full customization available for core count, length per reel, and packaging preferences. Why choose ADSS over traditional duct-laid fiber? ADSS offers faster deployment, lower maintenance, and better adaptability to challenging terrain, especially where trenching is impractical or too costly.
Product Categories : Outdoor Fiber Optic Cable > ADSS Fiber Optic Cable
